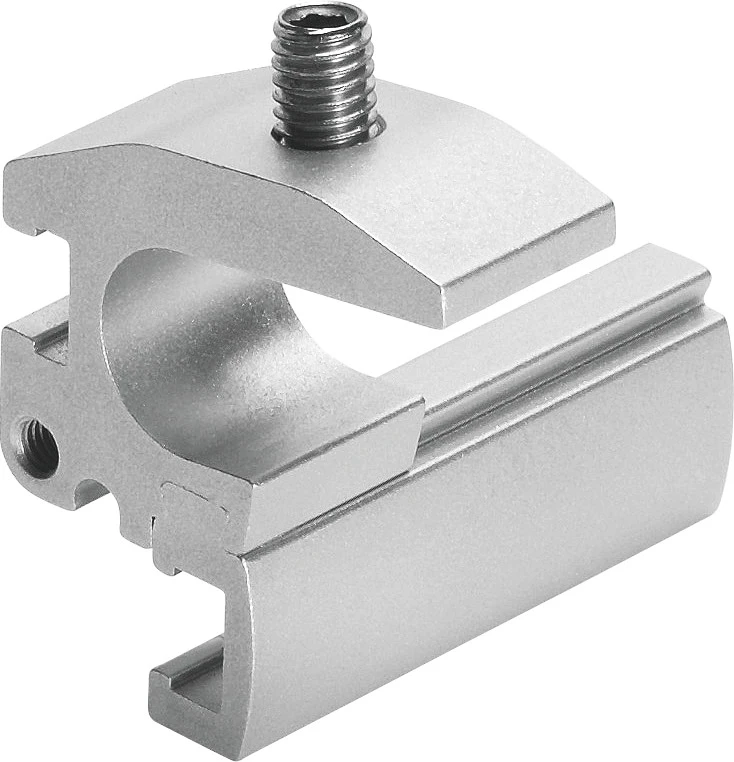

Standards-based cylinders DSBC, Accessories, Mounting, SMBZ-8-32/100
SKU: 537806
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, to ISO 15552
• Accessories, Mounting
• Size 8
• Design For tie rod
• Mounting position optional
• For piston diameter Ø32 - Ø100
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -40 °C ... 120 °C
• Tightening torque ≤0.5 Nm
• Product weight 14 g
• Type of mounting Clamped
• Note on materials RoHS-compliant
• Material housing Anodised wrought aluminium alloy
• Material screws High-alloy stainless steel
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBC, to ISO 15552
• ISO 15552 (ISO 6431, VDMA 24562)
• Strokes of up to 2800 mm
• With self-adjusting pneumatic end-position cushioning PPS
• For position sensing
• Excellent flexibility thanks to the wide range of variants
• Comprehensive range of accessories for just about every type of installation
• Optionally with metal scraper
