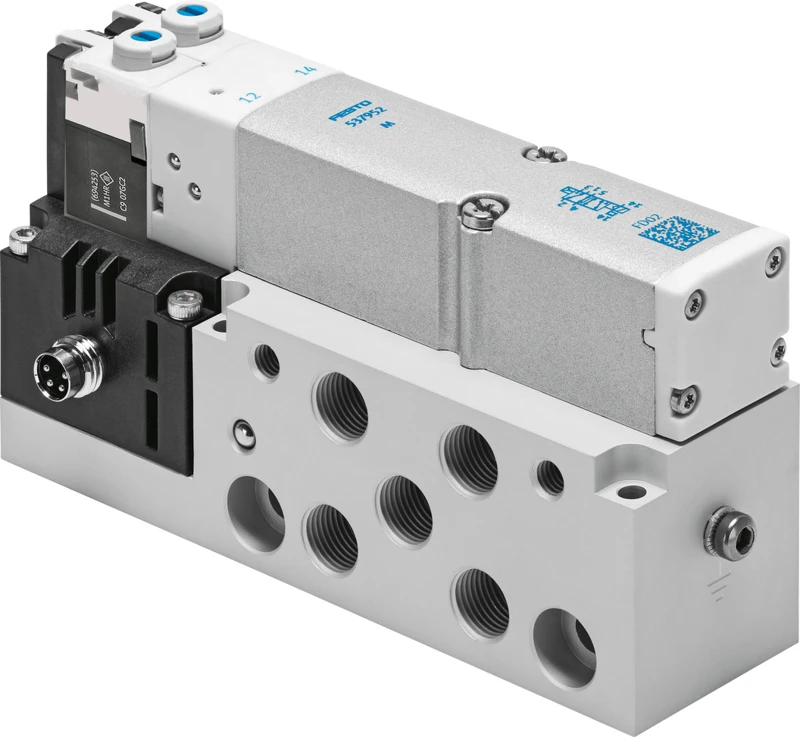

Solenoid valve, VMPA2-M1H-G-G1/8-PI

Specifications • Solenoid valves VMPA • Internal pilot air supply – Set comprising solenoid valve on individual sub-base • Valve function 5/3 closed • Type of actuation Electric • Valve size 20 mm • Standard nominal flow rate (standardised to DIN 1343) 610 l/min • Pneumatic working port G1/8 • Operating voltage 24V DC • Operating pressure 0.3 MPa ... 0.8 MPa • Operating pressure 3 bar ... 8 bar • Design Piston gate valve • Type of reset Mechanical spring • Approval c UL us - Recognized (OL)
