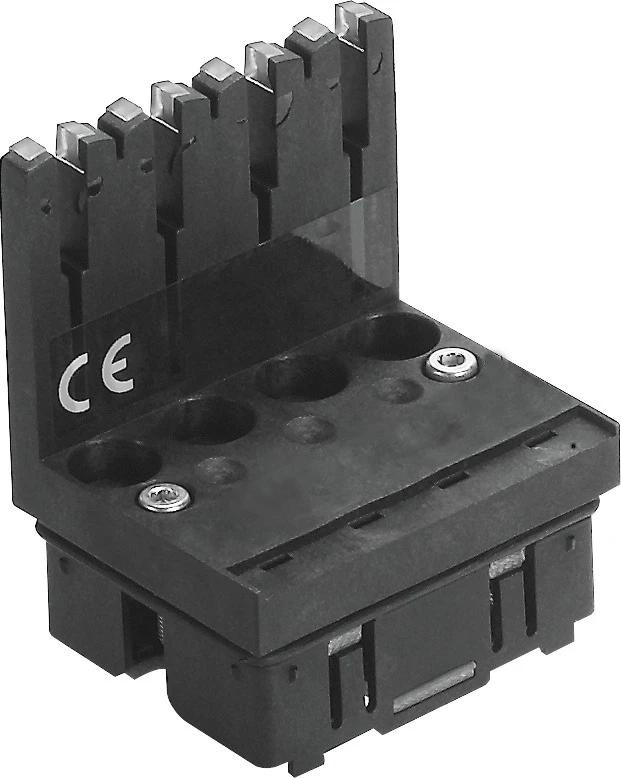

Electronics module, VMPA2-FB-EMG-4

Specifications • Accessories for Valve terminal MPA-S • Electronics module • Diagnosis Undervoltage of valves • Max. number of valve positions 2 • Max. number of valve coils 4 • Internal current consumption, load voltage 23 mA • Internal current consumption, operating voltage 8 mA • Nominal pick-up current per solenoid coil 99 mA up to 24 ms • Nominal current with current reduction 18 mA after 24 ms • Corrosion resistance class CRC 1 - Low corrosion stress (when installed)
