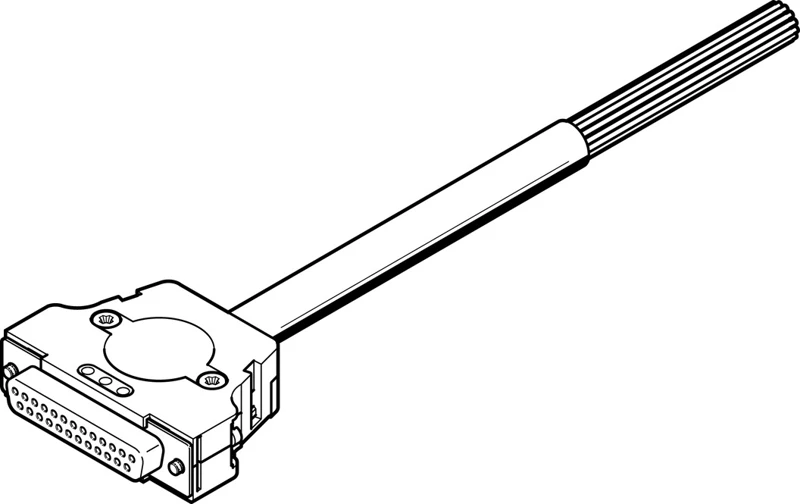

Connecting cable, NEBV-S1G25-K-2.5-N-LE25
SKU: 538225
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminals VTUB-12
• Accessories, Connecting cable for multi-pin plug
• Type of mounting 4-40 UNC-2B
• Product weight 490 g
• Electrical connection 1 Sub-D socket, 25-pin
• Electrical connection 2 Open end, 25-wire
• Nominal operating voltage DC 24 V
• Cable length 2.5 m
• Cable characteristic Standard
• Min. cable bending radius 105 mm
• Cable diameter 10.5 mm
• Cable structure 20 x 0.25 mm² + 5 x 0.34 mm²
• Degree of protection IP65, IP67, In assembled state
Buy currently uses Select Automation shop pricing and checkout.
• Connecting cable NEBV
• For solenoid coils form A, form B or form C
• For solenoid coils with thread M8x1 or M12x1 A-coded
• For solenoid coils ZC or various special connection patterns
• Pre-assembled at one or both ends
• Cable length 0.1 ... 30 m
• With PUR cable
• Ambient temperature -25 ... +80 °C
