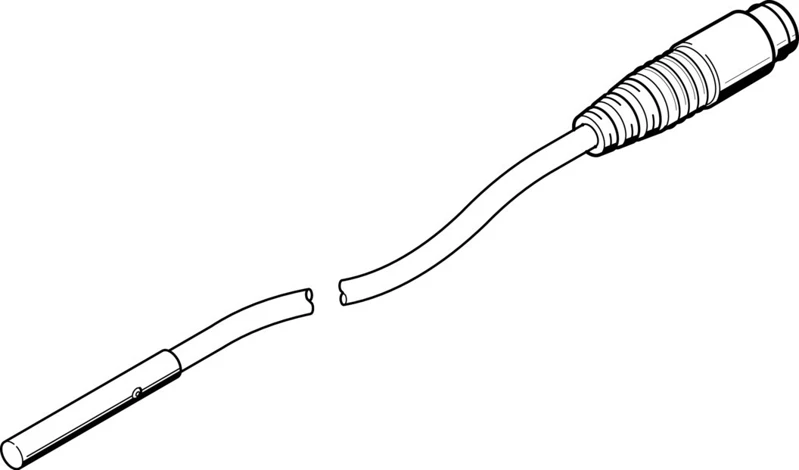

Proximity sensor, SIEH-3B-NS-S-L

Specifications • Proximity switches SIEH, inductive • Size 3 mm • Switching output NPN • Switching element function N/O contact • Electrical connection 3-pin - Cable with plug - M8x1 • Operational voltage range DC 10 V - 30 V • Design Round • Conforms to standard EN 60947-5-2 • Symbol 00991703 • Approval RCM trademark, c UL us listed (OL) • CE mark To EU EMC Directive • Measuring principle Inductive • Rated operating distance 1 mm • Assured operating distance 0.81 mm • Reduction factors Aluminium = 0.5, StainlSuction cup complete, ESS steel St 18/8 = 0.8, Copper = 0.45, Brass = 0.6, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C • Repetition accuracy 0.02 mm
