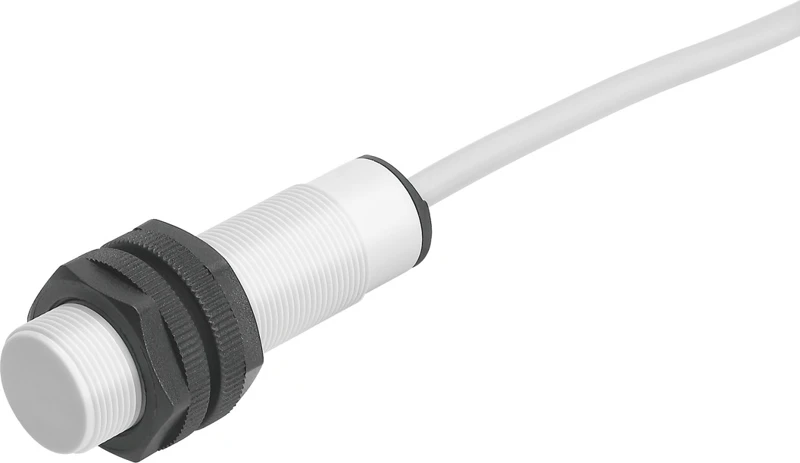

Proximity sensor, SIEN-M18NB-PS-K-L-PA

Specifications • Proximity switches SIEN-...-PA, inductive, Standard switching distance, polyamide housing • Size M18 • Electrical connection 3-wire - Cable • Operational voltage range DC 10 V - 30 V • Design Round • Conforms to standard EN 60947-5-2 • Symbol 00991702 • Approval RCM trademark, c UL us listed (OL) • CE mark To EU EMC Directive • Measuring principle Inductive • Rated operating distance 8 mm • Assured operating distance 6.48 mm • Reduction factors Aluminium = 0.35 - 0.5, Stainless steel St 18/8 = 0.6 - 1.0, Copper = 0.25 - 0.45, Brass = 0.35 - 0.5, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C • Repetition accuracy 0.16 mm • Switching output PNP • Switching element function N/O contact
