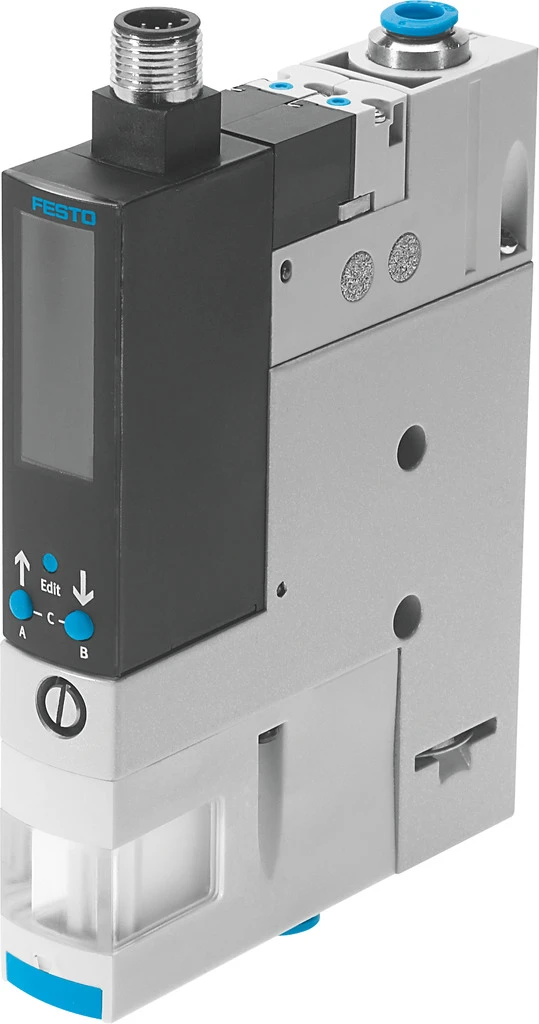

Vacuum generator, OVEM-07-H-B-QO-CE-N-2P
SKU: 538832
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators OVEM
• Nominal size, Laval nozzle 0.7 mm
• Max. vacuum 93 %
• Max. suction flow rate against atmosphere 16 l/min
• Grid dimension 20 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic High vacuum, Standard
• Grade of filtration 40 µm
• Manual override Non-detenting, Additionally via operating buttons
• Integrated function Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, electrical, Check valve, Open silencer, Vacuum switch
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator OVEM
• Total process reliability with the OVEM as it monitors set evacuation and ejection times and sends automatic fault notifications.
• Can be controlled conveniently from the PLC using IO-Link®.
• The air saving function keeps your compressed air costs to a minimum.
• Compact design
• Monitoring with vacuum sensor with IO-Link®
• Central electrical connection via an M12 plug
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• Integrated filter with inspection window
• Optionally with air-saving function and LCD display
• Short switching times thanks to integrated solenoid valves
• Adjustable ejector pulse: precise and safe depositing of the workpiece
• Sustainable operation with air-saving circuit
