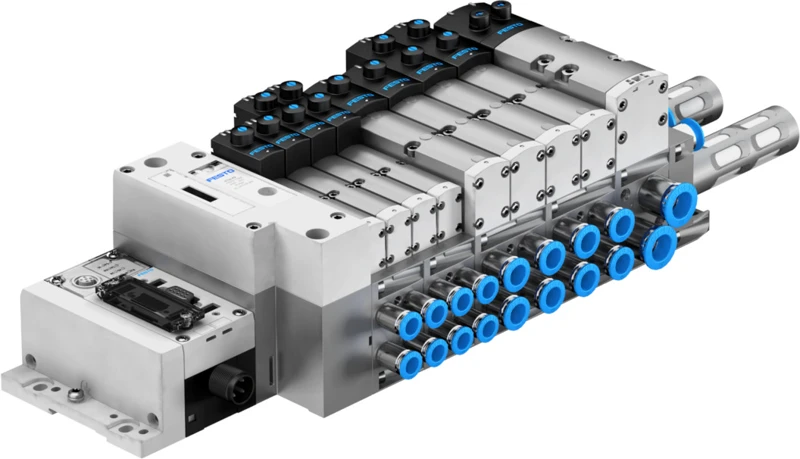

Valve terminal, VTSA-FB-NPT
SKU: 539218
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Electrical control Ethernet, Fieldbus, Integrated controller
• Electrical I/O system yes
• Terminal type 44
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Ambient temperature -5 °C ... 50 °C
• Storage temperature -20 °C ... 60 °C
• Relative air humidity 0 - 90%
• Degree of protection IP65, NEMA 4
• Corrosion resistance class CRC 0 - No corrosion stress
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTSA/VTSA-F, NPT
• High-performance valves in a sturdy metal housing
• Five valve sizes on one valve terminal (width 65 mm with adapter)
• Standardised from the multi-pin plug to the fieldbus connection and control block
• Dream team: fieldbus valve terminal suitable for electrical peripherals CPX. This means:
– Forward-looking internalcommunication system for actuating the valves and CPX modules
– Four valve sizes on one valve terminal without adapters
• Valve functions for integration in control architectures of higher categories to EN ISO 13849-1
