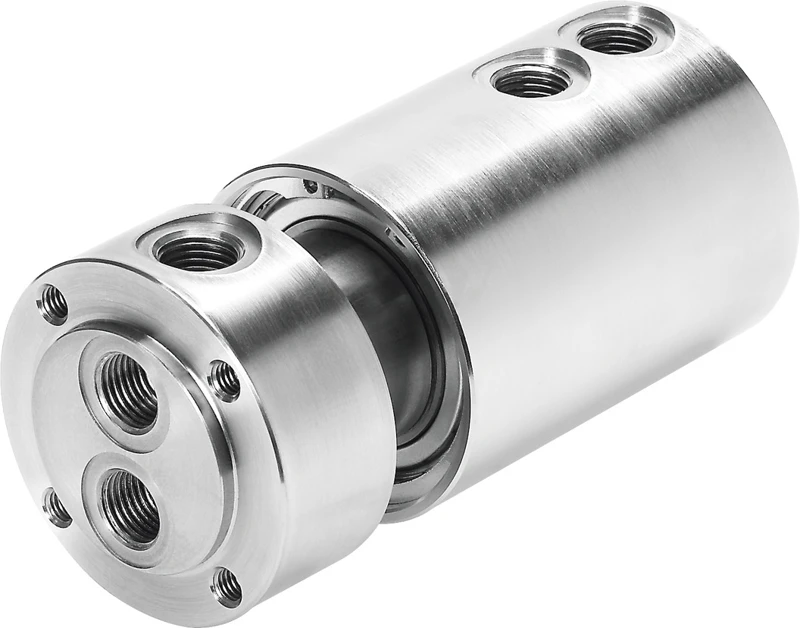

Rotary distributor, GF-1/2-2

Specifications • Rotary distributor GF • Multiple rotary through-feeds • Nominal size 15 mm • Mounting position optional • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Standard nominal flow rate 1.1-2.1 4440 l/min • Standard nominal flow rate 1.2-2.2 7380 l/min • Max. rotational speed 300 rpm • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) • Pneumatic connection, port 1 G1/2 • Pneumatic connection, port 2 G1/2
