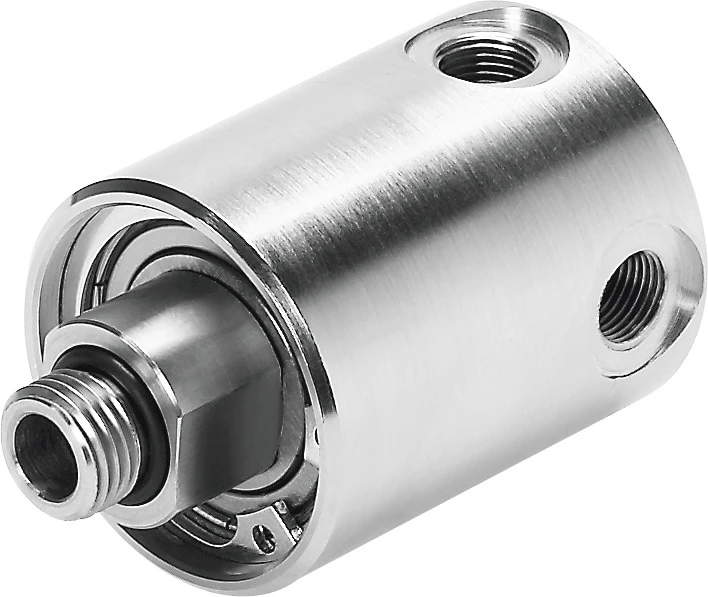

Rotary distributor, GF-1/8-M5

Specifications • Rotary indexing tables DHTG • Accessories, Rotary distributor, GF-..., single • Nominal size 4.1 mm • Mounting position optional • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Standard flow rate 1-2.1 (6->0) 490 l/min • Standard flow rate 1-2.X open (6->0) 2250 l/min • Max. rotational speed 3000 rpm • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) • Pneumatic connection, port 1 G1/8 • Pneumatic connection, port 2 M5
