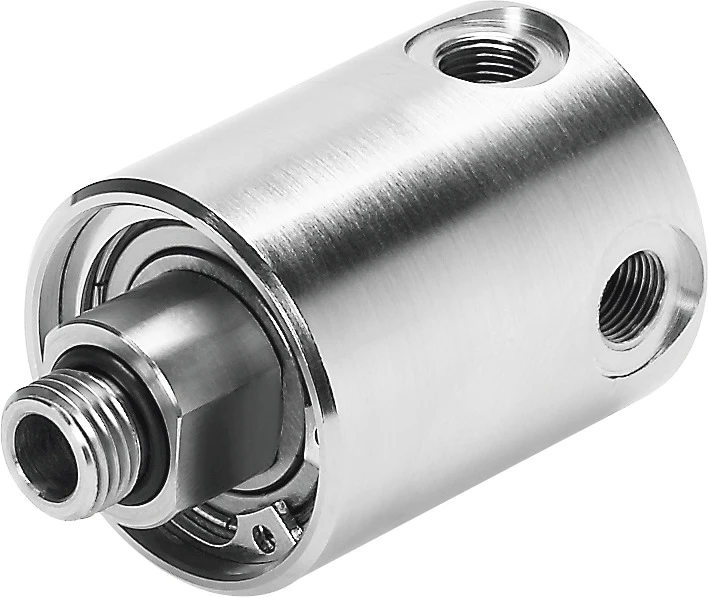

Rotary distributor, GF-1/4-1/8

Specifications • Rotary indexing tables DHTG • Accessories, Rotary distributor, GF-..., single • Pneumatic connection, port 1 G1/4 • Pneumatic connection, port 2 G1/8 • Nominal size 8 mm • Mounting position optional • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Standard flow rate 1-2.1 (6->0) 1730 l/min • Standard flow rate 1-2.X open (6->0) 4050 l/min • Max. rotational speed 3000 rpm • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
