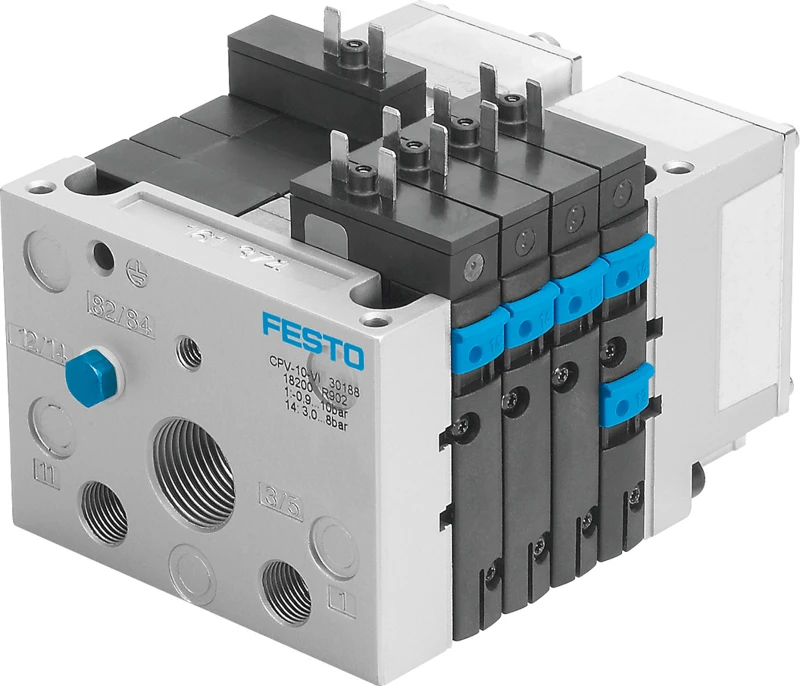

Manifold assembly, CPV10-EX-VI

Specifications • Valve manifold assembly CPV10-EX-VI, Compact Performance • See datasheet for available configurations • Electrical control Individual connection • Terminal type 10 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Media temperature -5 °C ... 50 °C • Ambient temperature -5 °C ... 50 °C • Storage temperature -20 °C ... 40 °C • Degree of protection Plug sockets IP50, Valve terminal IP55 • Corrosion resistance class CRC 1 - Low corrosion stress, 2 - Moderate corrosion stress • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar
