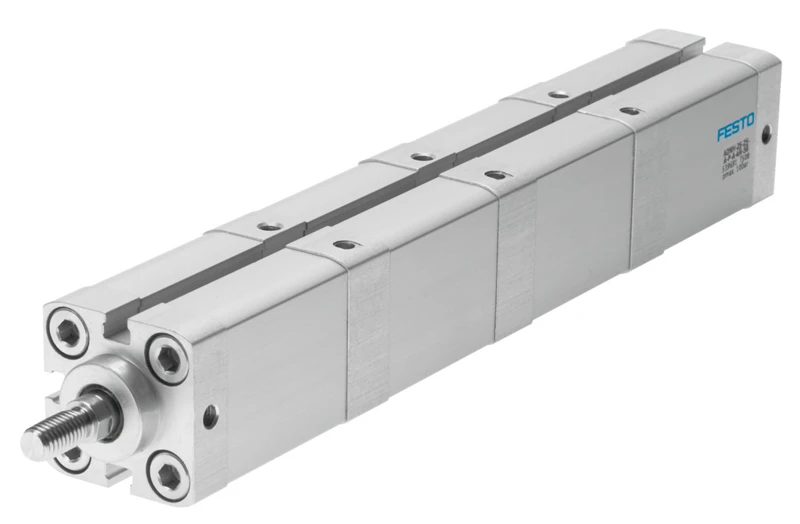

High-force cylinder, ADNH-25- -
SKU: 539691
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• High-force cylinders ADNH, standard hole pattern
• Stroke 5 mm ... 150 mm
• Piston diameter 25 mm
• Based on standard ISO 21287
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Operating pressure 0.08 MPa ... 1 MPa
• Operating pressure 0.8 bar ... 10 bar
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
High-force cylinder ADNH
• Module cylinder with standard hole pattern and additive force development on the forward stroke for all components with the same stroke.
• Max. 4 cylinders can be combined
• Increased thrust force
• Only 2 connections are required to pressurise all cylinders
• Piston rod with female or male thread
• For position sensing
• Mounting hole pattern to ISO 21287
