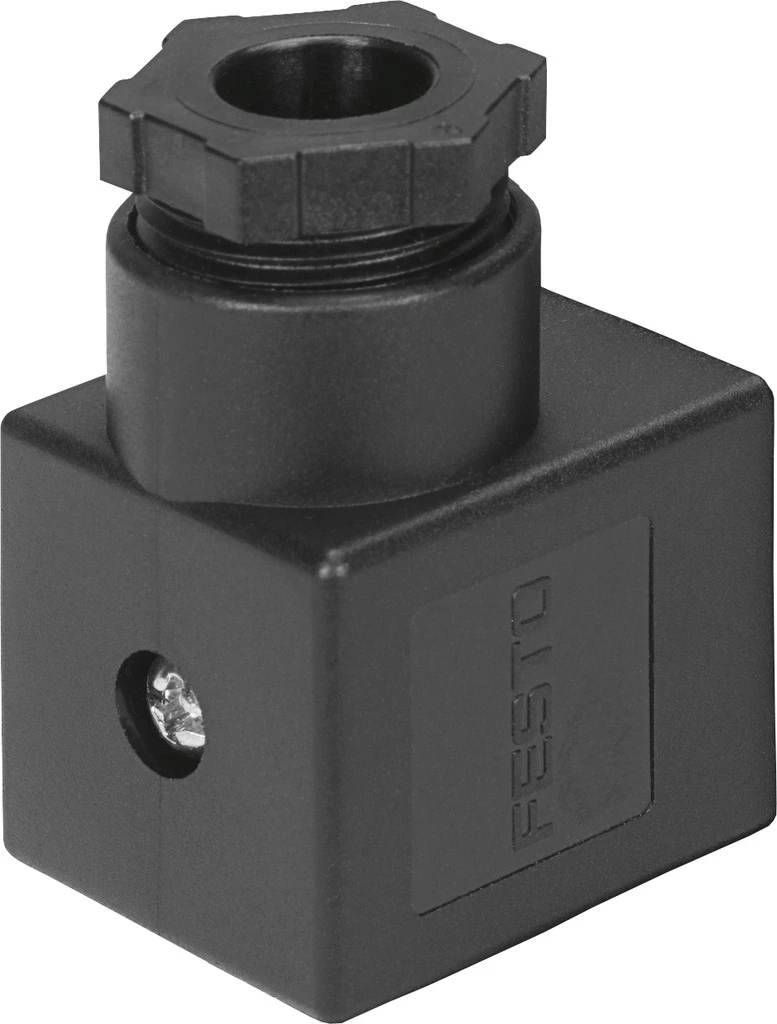

Plug socket, MSSD-V-M16
SKU: 539713
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plug socket
• Frequency of connection 50
• Type of mounting On solenoid valve via M3 central screw
• Mounting position optional
• Product weight 35 g
• Electrical connection 3-pin, Angled socket, Type B, To DIN EN 175301-803, Square design
• Cable fitting M16
• Permissible cable diameter 6 mm ... 8 mm
• Connection cross section 0.75 mm²
• Degree of protection IP65, To IEC 60529
• Ambient temperature -20 °C ... 115 °C
Buy currently uses Select Automation shop pricing and checkout.
Plug socket MSSD
• For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils
• For connecting individual valves
• Available with LED display
