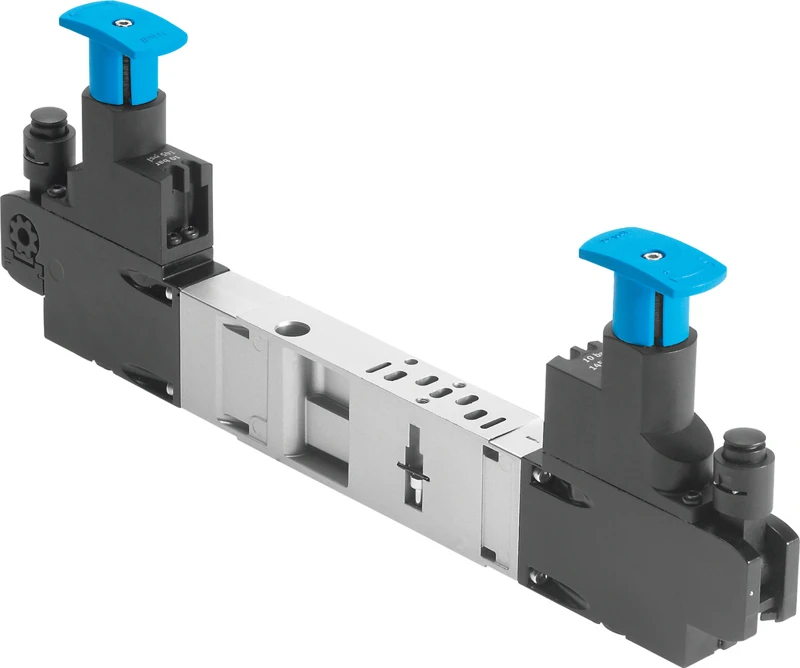

Regulator plate, VABF-S4-2-R5C2-C-10

Specifications • Valve terminals VTSA • Accessories – Pneumatic components • Regulator plate • Construction width 18 mm • Based on standard ISO 15407-2 • Mounting position optional • Controller function Output pressure constant, With secondary venting • Symbol 00991862 • Selection of pressure gauge Possible • Operating pressure 1 MPa • Operating pressure 10 bar • Pressure regulation range 0.05 MPa ... 0.85 MPa • Pressure regulation range 0.5 bar ... 8.5 bar • Pressure regulation range 7.25 psi ... 123.25 psi
