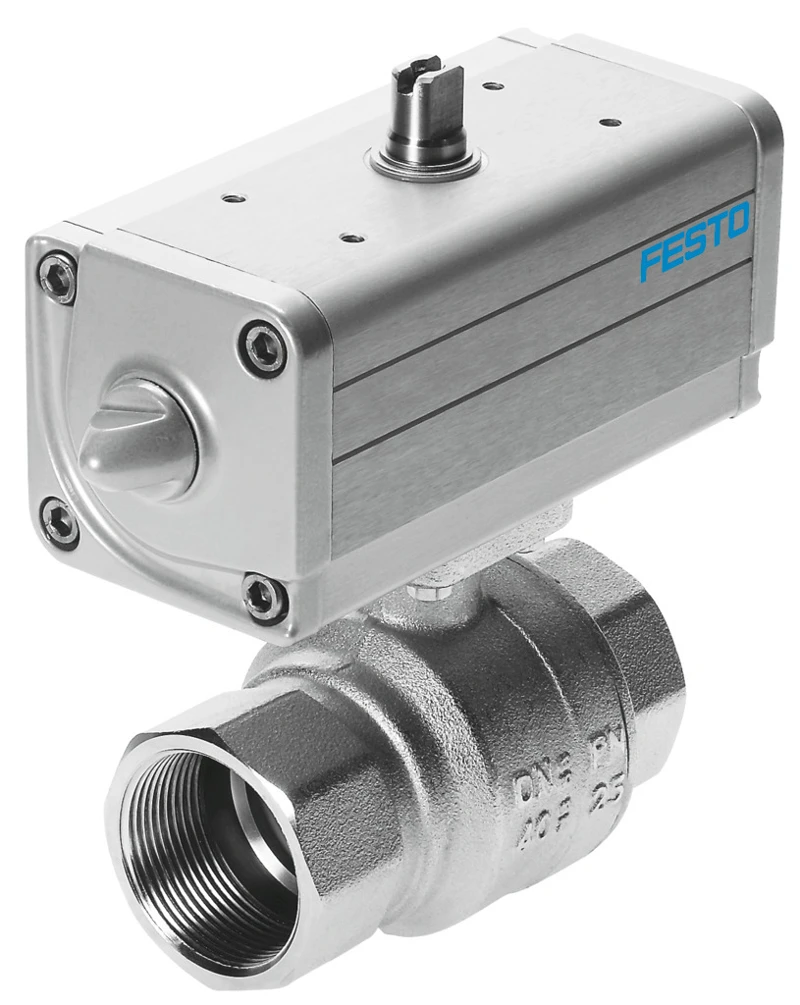

Ball valve actuator unit, VZPR-BPD-22-R112
SKU: 540516
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valve actuators VZPR-BPD
• Design 2-way ball valve, Semi-rotary drive
• Type of actuation Electric, Pneumatic
• Mounting position optional
• Type of mounting CNOMO, Via female thread
• Connection Process valve Rp1 1/2
• Switching position indicator Knob actuator direction = flow direction
• Nominal size DN 40
• Operating pressure of ball valve drive unit 1 bar ... 8.4 bar
• Nominal pressure PN 25
• Symbol 00991921
• Media temperature -20 °C ... 150 °C
• Ambient temperature -20 °C ... 80 °C
• LABS (PWIS) conformity VDMA24364 zone III
• Product weight 3800 g
• Corrosion resistance class CRC 1 - Low corrosion stress
Buy currently uses Select Automation shop pricing and checkout.
Ball valve actuator unit VZPR
• Ready-installed complete system consisting of double-acting quarter turn actuator DAPS and ball valve VAPB in brass.
• Ball valve actuator unit with double-acting quarter turn actuator DAPS
• Brass ball valve
• NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845
• Flow is fully opened or closed in both directions
