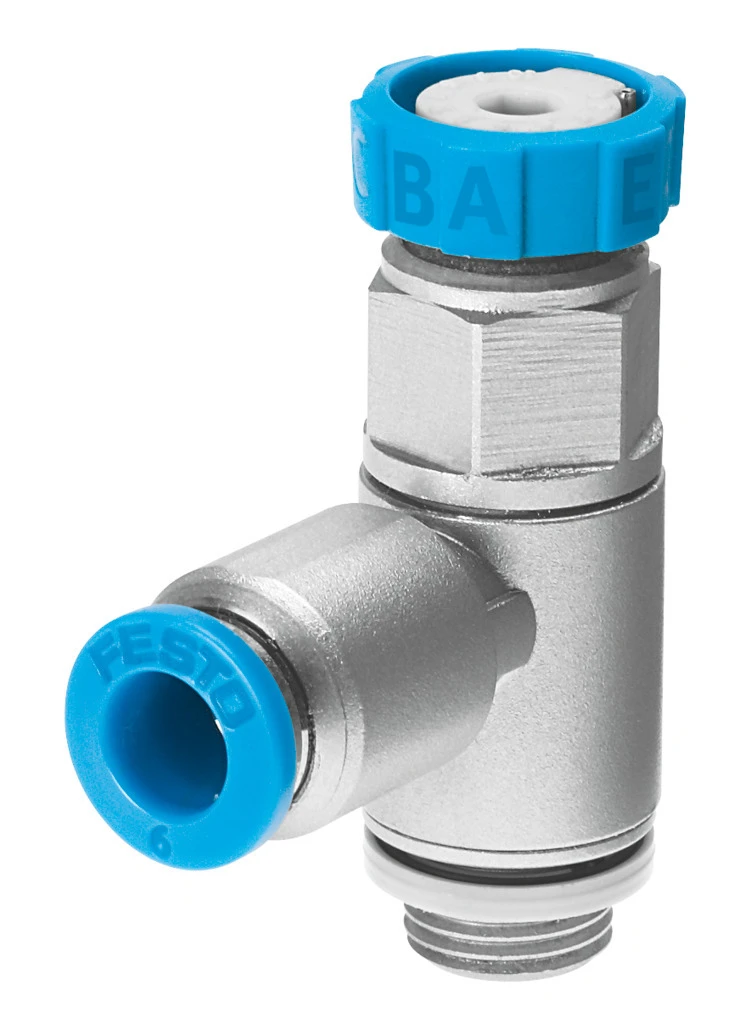

One-way flow control valve, GRLSA-1/4-QS-8
SKU: 540662
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valve GRxA, GRxZ
• Valve function Exhaust air one-way flow control function
• Pneumatic connection, port 1 QS-8
• Pneumatic connection, port 2 G1/4
• Type of actuation Manual
• Adjustment component Internal hexagon
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 0 l/min ... 450 l/min
• Standard nominal flow rate in blocked direction 390 l/min ... 570 l/min
• Ambient temperature -10 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve GRxA, GRxZ
• Tried and tested for precise adjustment of the flow rate.
• The combination of polymer and metal makes it lightweight, compact and sturdy.
• Functional combination of one-way flow control valve and piloted check valve
• Flow control valve, flow control at one end
• Polymer, metal or stainless steel design
• Standard, mini, in-line variants with different flow rates
• Connections: thread at both ends, push-in connector at both ends, thread/push-in connector
