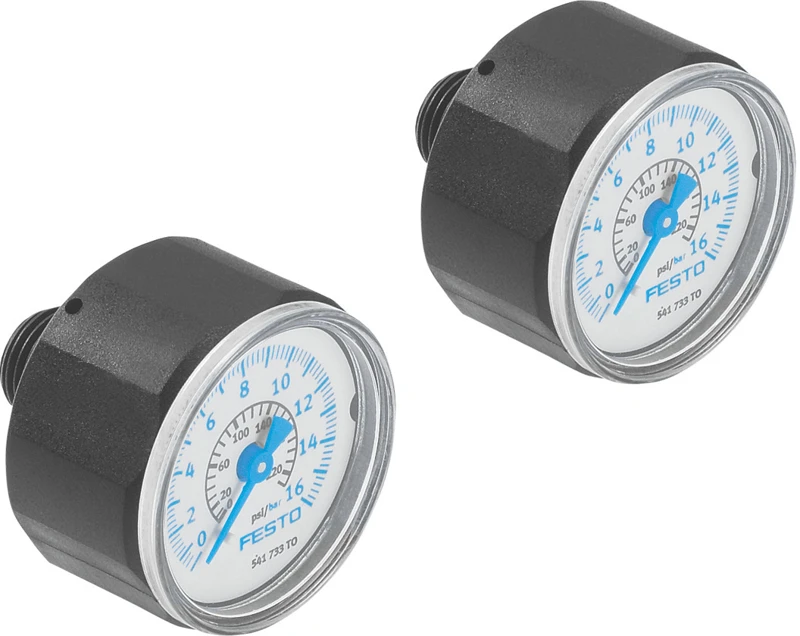

Pressure gauge kit, DPA-40-10-MA-SET
SKU: 540781
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure booster DPA
• Accessories, Pressure gauge kit DPA-MA-SET for DPA-40
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 27
• Design Bourdon tube pressure gauge
• Type of mounting Via male thread
• Operating pressure 10 bar
• Measurement accuracy class 4
• Degree of protection IP43
• Ambient temperature 5 °C ... 60 °C
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Note on materials RoHS-compliant
• Mounting position optional
• Pneumatic connection R1/8
• Product weight 16 g
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Pressure booster DPA
• Accessories, Pressure gauge kit DPA-MA-SET for DPA-40
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 27
• Design Bourdon tube pressure gauge
• Type of mounting Via male thread
• Operating pressure 10 bar
• Measurement accuracy class 4
• Degree of protection IP43
• Ambient temperature 5 °C ... 60 °C
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Note on materials RoHS-compliant
• Mounting position optional
• Pneumatic connection R1/8
• Product weight 16 g
