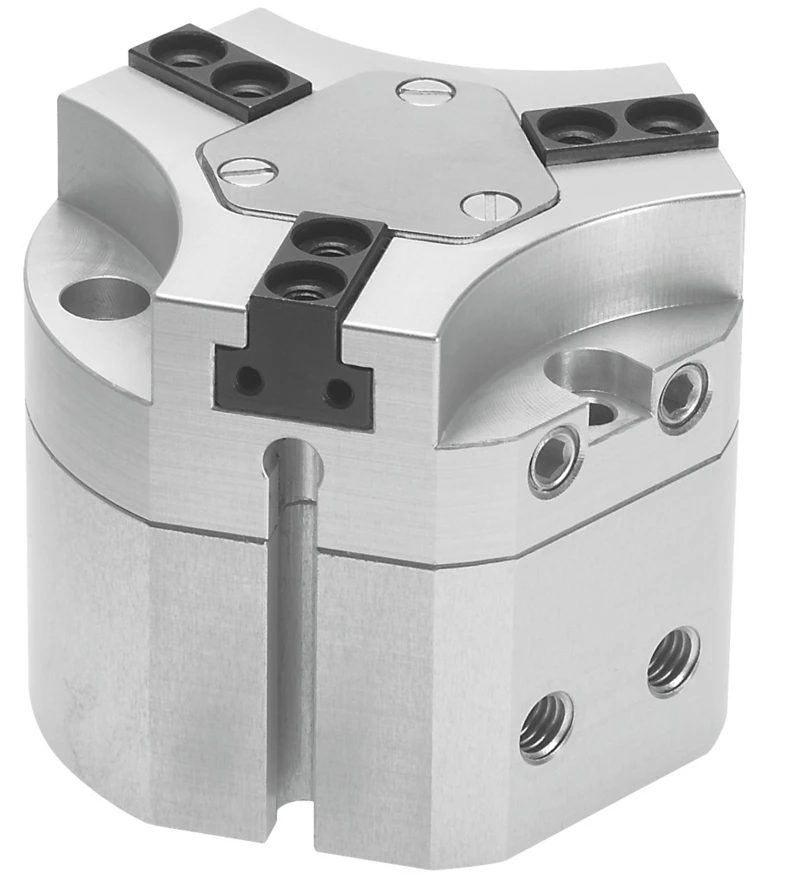

Three-point gripper, HGDT-63-A

Specifications • Three-point gripper HGDT • Size 63 • Stroke per gripper jaws 10 mm • Max. replacement accuracy ≤0.2 mm • Max. angular gripper jaw backlash ax, ay ≤0.1 deg • Max. gripper jaw backlash Sz ≤0.05 mm • Rotationally symmetrical ≤0.2 mm • Repetition accuracy, gripper ≤0.03 mm • Number of gripper jaws 3 • Mounting position optional • Mode of operation Double-acting • Gripper function 3-point • Design Wedge-shaped drive, Force pilot operated motion sequence • Position detection Via proximity switch • Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) 551 N
