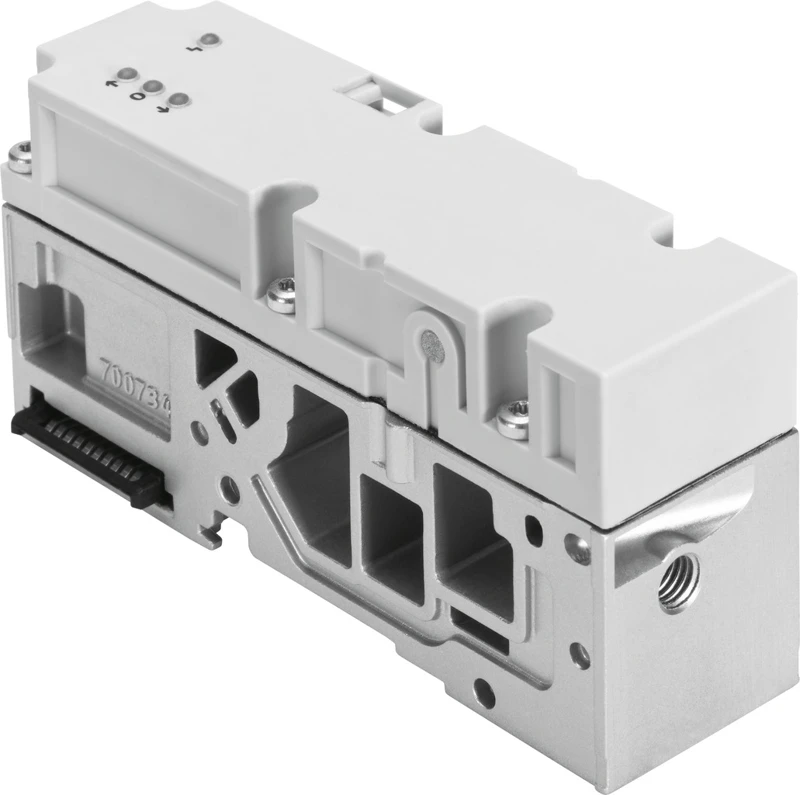

Pressure sensor, VMPA-FB-PS-3/5

Specifications • Accessories for Valve terminal MPA-S • Pressure sensor • Symbol 00992805 • Approval c UL us - Recognized (OL) • CE mark (see declaration of conformity) To EU EMC Directive In accordance with EU RoHS Directive • CE marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions • Note on materials RoHS-compliant • Measured variable Relative pressure • Measurement method Piezoresistive pressure sensor with display • Pressure measuring range 0 MPa ... 1 MPa • Pressure measuring range 0 bar ... 10 bar • Pressure measuring range 0 psi ... 145 psi
