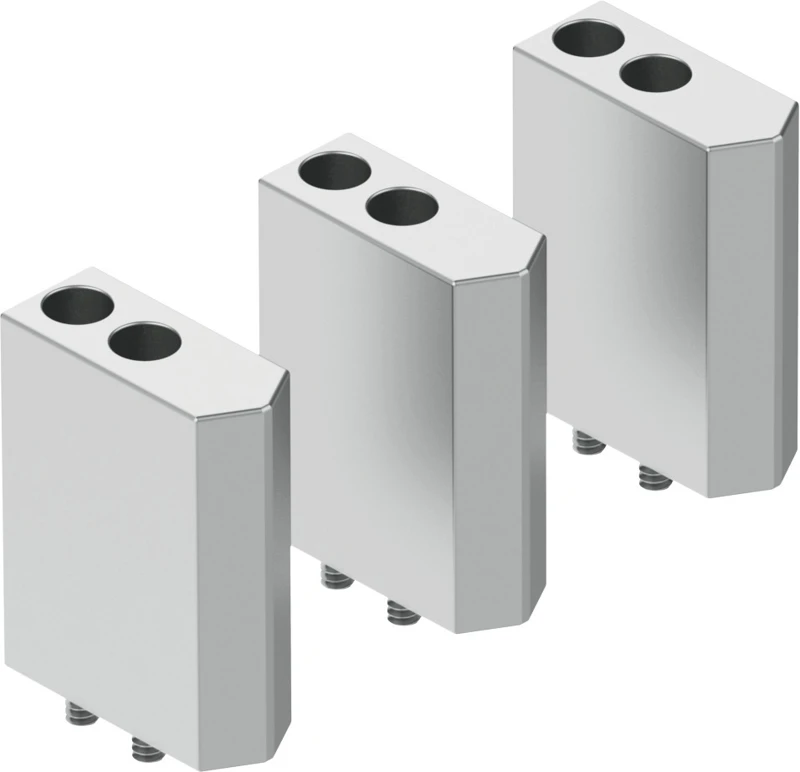

Gripper jaw blank, BUB-HGDT-35
SKU: 541102
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Three-point gripper HGDT
• Accessories, Gripper jaw blank BUB-HGDT
• Size 35
• Mounting position optional
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature 5 °C ... 60 °C
• Product weight per gripper jaw 22 g
• Type of mounting Via through-hole and centring sleeve
• Note on materials RoHS-compliant
• Material unmachined part Wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Three-point gripper HGDT
• Sturdy T-slot gripper for demanding tasks.
• Offers both external and internal gripping.
• Synchronous movement of the gripper jaws
• Gripper jaw guide protected by sealing air against dust
• High-force variant available
• With T-slot guide
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
