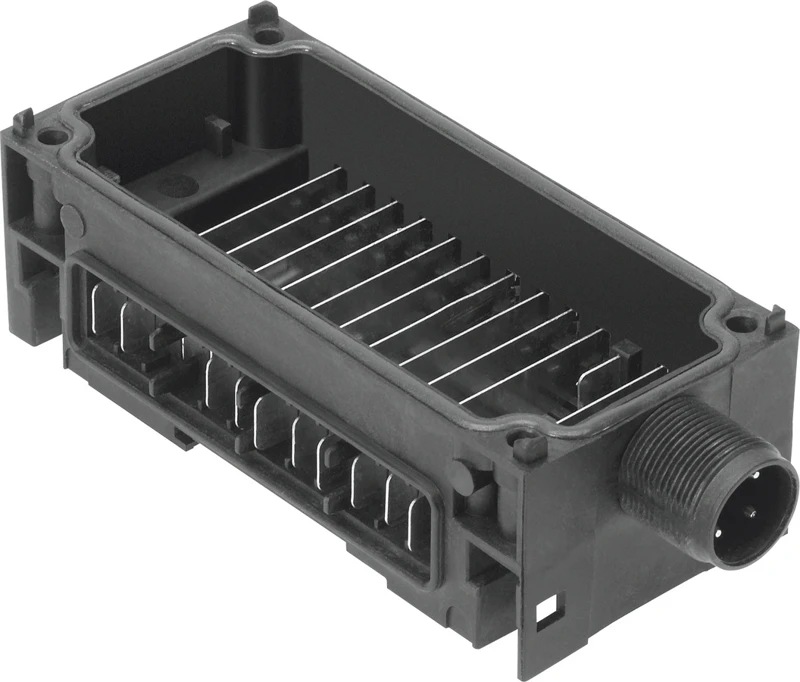

Interlinking block, CPX-GE-EV-Z-7/8-4POL
SKU: 541250
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Modular electrical terminal CPX
• Accessories, Interlinking block
• Type of mounting Tie rod
• Product weight 125 g
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Note on materials RoHS-compliant
• Material housing PA-reinforced
• Electrical connection 4-pin, 7/8'' round plug connector
• Max. power supply 10 A
• Power supply Additional supply
Buy currently uses Select Automation shop pricing and checkout.
Modular electrical terminal CPX
• Choice of several valve terminals for different applications: MPA-S, MPA-L, VTSA/VTSA-F/VTSA-F-CB
• Economical from the smallest configuration up to the maximum number of modules
• Up to 9 electrical input/output modules plus bus node and pneumatic interface/electronics modules for valves
• Extensive range of functions and connection options for the electrical modules
• Choice of connection technology for technically and economically optimised connections
• Can be used as a dedicated remote I/O module
