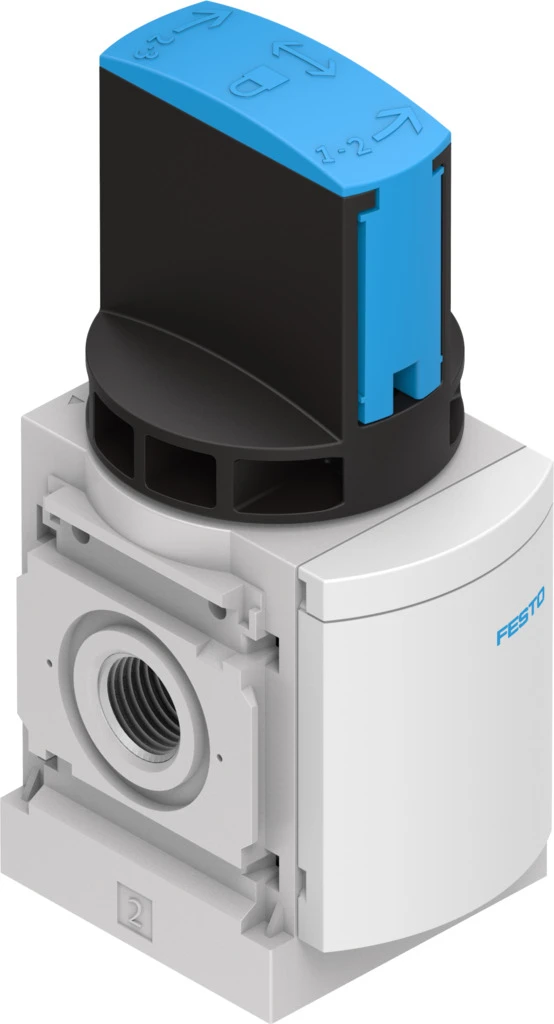

On/off valve, MS6-EM1
SKU: 541279
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• On/off valves MS4/MS6-EM1, MS series
• Design Rotary gate valve
• Type of actuation Manual
• Exhaust-air function Without flow control option
• Type of piloting Direct
• Valve function 3/2 double solenoid
• Operating pressure 0 bar ... 18 bar
• Standard nominal flow rate (standardised to DIN 1343) 3000 l/min ... 8700 l/min
• Pneumatic connection, port 3 G1/2
Buy currently uses Select Automation shop pricing and checkout.
On/off valve MS6-EM
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 62 mm
• Manual 3/2-way valve for pressurising and exhausting pneumatic systems
• A silencer can be attached or the exhaust air ducted at port 3
• Switching position is immediately recognisable
• Optionally with pressure gauge and pressure sensor
• Variants recommended for production systems for manufacturing lithium-ion batteries
