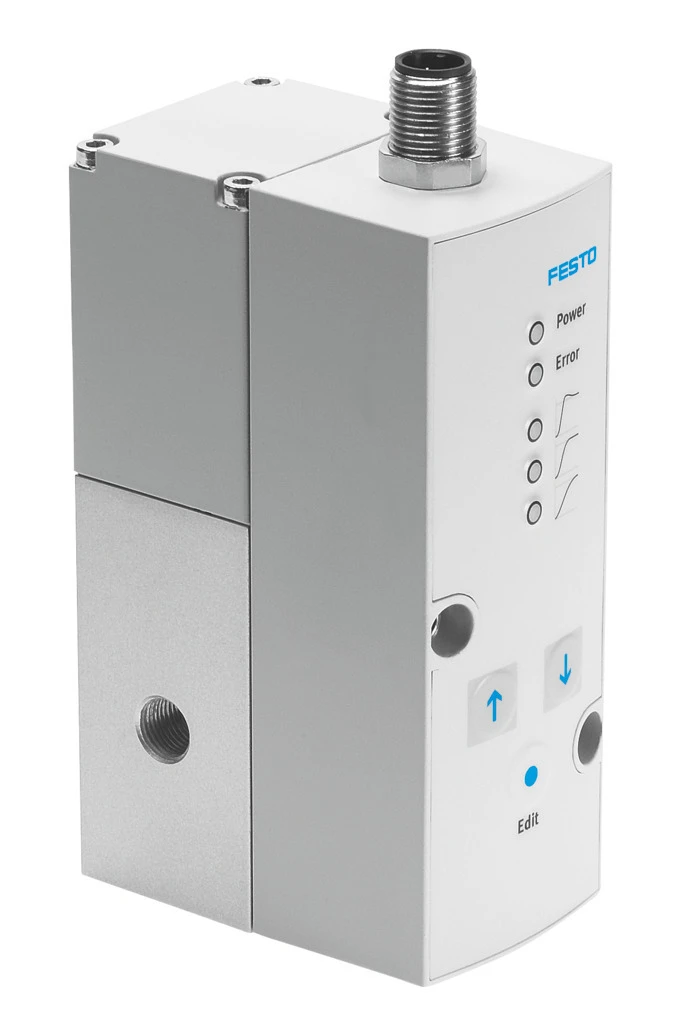

Proportional-pressure regulator, VPPM-6F-L-1-F-0L6H-V1N-S1

Specifications • Proportional-pressure regulator VPPM, with analogue interface • Nominal size, supply 6 mm • Nominal size, exhaust 4.5 mm • Type of actuation Electric • Sealing principle Soft • Mounting position optional • Design Piloted diaphragm regulator • Short circuit current rating For all electrical connections • Safety instructions Safety position VPPM: if the power supply cable is interrupted, output pressure is maintained unregulated. • Symbol 00995303 • Reverse polarity protection For all electrical connections • Type of reset Mechanical spring • Type of piloting Pilot actuated • Valve function 3-way proportional pressure regulator • Pneumatic connection, port 1 Sub-base • Pressure regulation range 0.06 bar - 6 bar • Standard nominal flow rate (standardised to DIN 1343) 900 l/min
