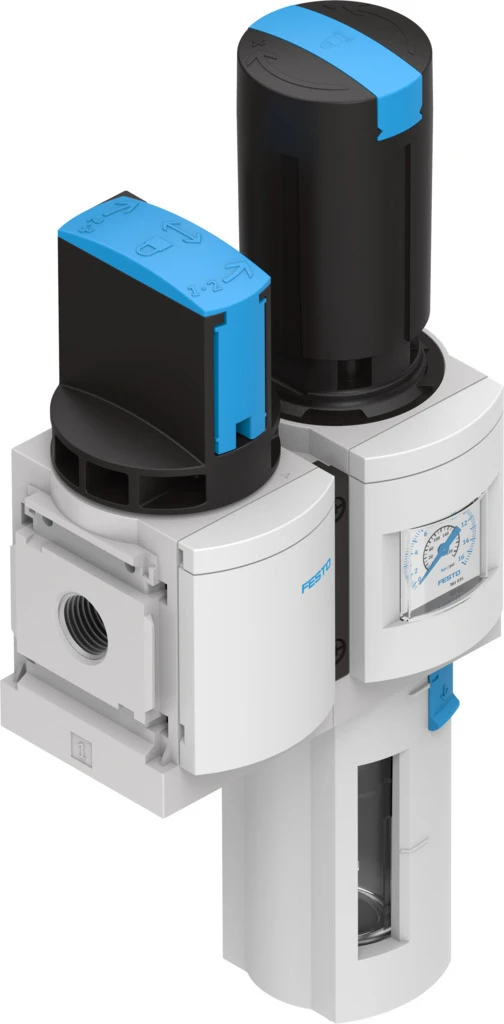

Service unit combination, MSB6-1/2:C3J2-WP
SKU: 542274
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combination MSB6
• Size 6
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 40 µm
• Condensate drain Fully automatic
• Design On/off valve, Filter regulator with pressure gauge
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard
• Symbol 00991756
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 5100 l/min
• Pressure regulation range 0.5 bar - 12 bar
Buy currently uses Select Automation shop pricing and checkout.
Service unit combination MSB6
• With the pre-configured MS series, Festo offers a holistic concept for your compressed air preparation.
• For simple standard applications as well as for application-specific solutions with the highest quality requirements.
• Grid dimension 62 mm
• Predefined or freely configurable combinations of service unit components
• Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
