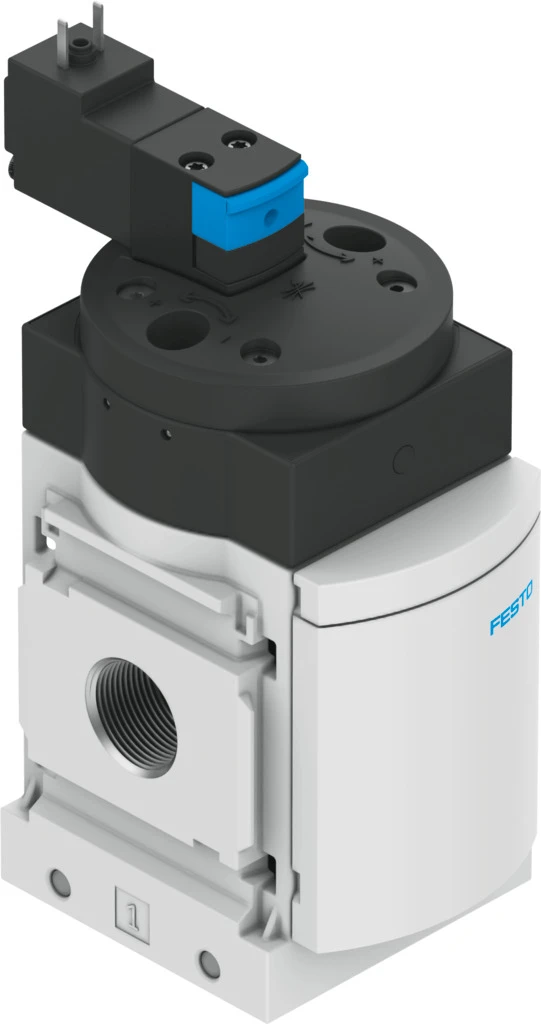

Soft start valve, MS6-DE-1/2-10V24
SKU: 542562
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start valves MS4/MS6-DE, MS series
• Type of actuation Electric
• Mounting position optional
• Manual override Detenting, Non-detenting
• Design Piston seat
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Pilot air supply Internal
• Flow direction Non-reversible
• Symbol 00991501
• Valve function 2/2
• Switching position indicator With accessories
• Operating pressure 4 bar ... 10 bar
• b value 0.39
• C value 28.97 l/sbar
• Standard nominal flow rate (standardised to DIN 1343) 6450 l/min
• Pneumatic connection, port 1 G1/2
Buy currently uses Select Automation shop pricing and checkout.
Soft-start valve MS6-DE
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 62 mm
• 2/2-way valve for slowly pressurising pneumatic installations with electrically switchable pressure switchover point
• Supply voltage 24 V DC, 110, 230 V AC
• Switchable pressure switching point
• For advancing the drives slowly and reliably into the initial position
• For avoiding sudden and unexpected movements
• Adjustable pressure build-up time
