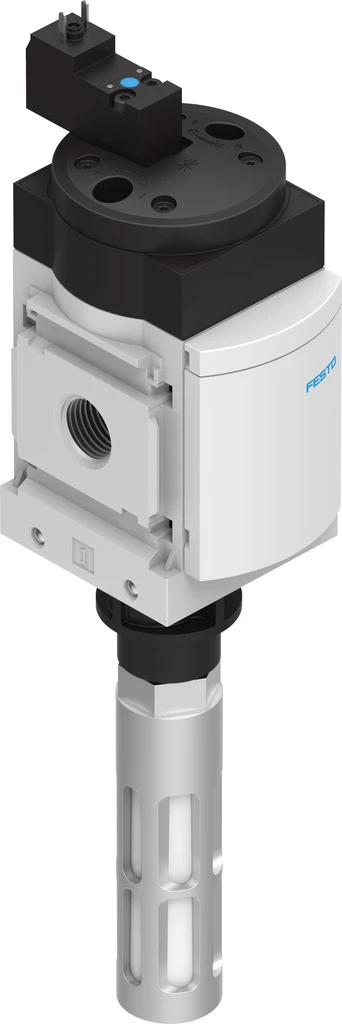

On/off valves, MS6-EE-1/2-10V24-S
SKU: 542602
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• On/off valves MS4/MS6-EM1, MS4/MS6-EE, MS series
• Design Piston gate valve
• Type of actuation Electric
• Exhaust-air function Without flow control option
• Manual override Non-detenting
• Type of reset Mechanical spring
• Type of piloting Pilot actuated
• Symbol 00991008
• Valve function 3/2-way, closed, monostable
• Operating pressure 4 bar ... 10 bar
• C value 29 l/sbar
• b value 0.4
• Standard nominal flow rate 7000 l/min
Buy currently uses Select Automation shop pricing and checkout.
On/off valves MS4/MS6-EM1, MS4/MS6-EE, MS series
• For pressurising and exhausting pneumatic systems
• Connection G1/4, G1/2
• Flow rate 1000 ... 8700 l/min
• Operating pressure 0 … 18 bar
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
