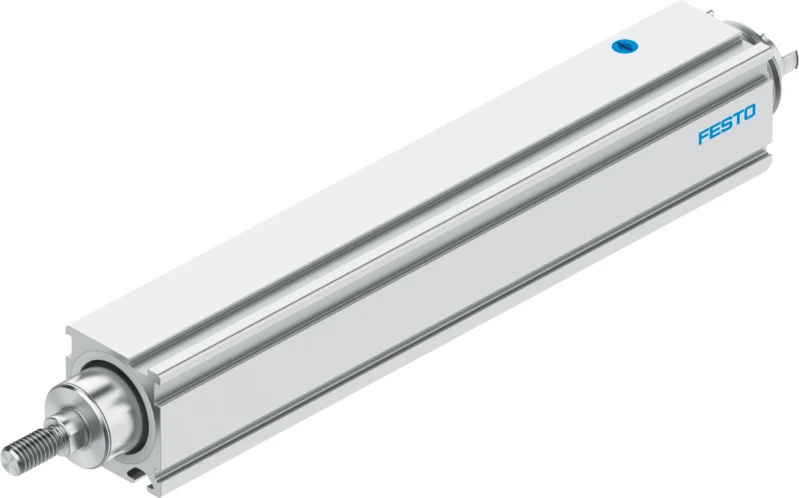

Electric cylinder, EPCC-BS-25-
SKU: 5428821
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder EPCC
• See datasheet for available configurations
• Size 25
• Stroke 25 mm ... 200 mm
• Stroke reserve 0 mm
• Piston rod thread M6
• Reversing backlash theoretical 100 µm
• Spindle diameter 6 mm
• Spindle pitch 2 mm/U ... 6 mm/U
• Torsional backlash at piston rod +/- 1 deg
• Mounting position optional
• Piston-rod end Male thread, Female thread
• Type of motor Stepper motor, Servo motor
• Position detection Via proximity switch
• Design Electric cylinder, With ball screw drive
• Spindle type Ball screw drive
• Max. feed force Fx 75 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder EPCC
• With its compact dimensions, precise and quiet ball screw drive and short positioning times, the EPCC is ideal in assembly systems, test and inspection systems, with desktop applications, in small parts handling or the electronics industry – wherever the installation space demands optimal utilisation.
• Low-cost: optimum price/performance ratio
• Flexible: wide range of mounting options for the motor
• Dynamic: lower internal friction
• Non-rotating piston rod with plain-bearing guide, stroke up to 500 mm
• Weight-optimised design - ideal for handling systems
• Unique: "One-size-down" assembly system for the best use of space in combination with toothed belt/spindle axis ELGC
• Variants recommended for production systems for manufacturing lithium-ion batteries
