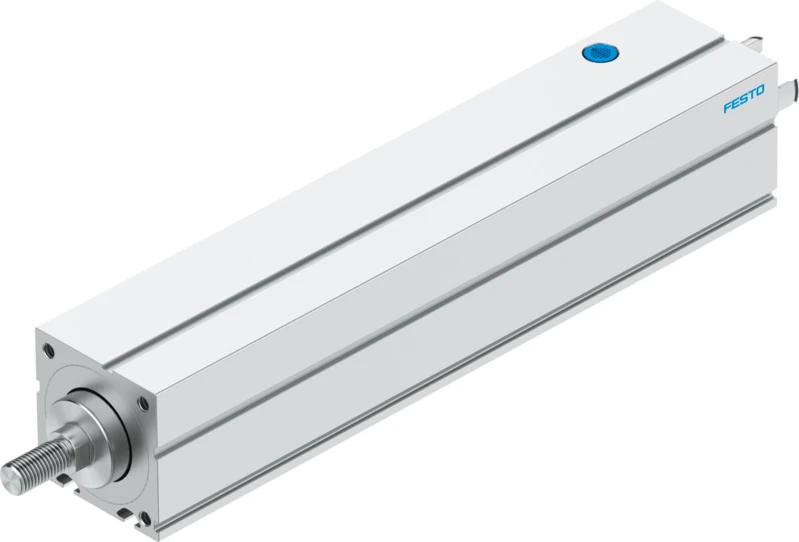

Electric cylinder, EPCC-BS-60-400-12P-A
SKU: 5428912
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinder EPCC
• Size 60
• Stroke 400 mm
• Stroke reserve 0 mm
• Piston rod thread M12x1.25
• Reversing backlash theoretical 100 µm
• Spindle diameter 12 mm
• Spindle pitch 12 mm/U
• Torsional backlash at piston rod +/- 1 deg
• Mounting position optional
• Piston-rod end Male thread
• Type of motor Stepper motor, Servo motor
• Position detection Via proximity switch
• Design Electric cylinder, With ball screw drive
• Spindle type Ball screw drive
• Max. feed force Fx 1000 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder EPCC
• With its compact dimensions, precise and quiet ball screw drive and short positioning times, the EPCC is ideal in assembly systems, test and inspection systems, with desktop applications, in small parts handling or the electronics industry – wherever the installation space demands optimal utilisation.
• Low-cost: optimum price/performance ratio
• Flexible: wide range of mounting options for the motor
• Dynamic: lower internal friction
• Non-rotating piston rod with plain-bearing guide, stroke up to 500 mm
• Weight-optimised design - ideal for handling systems
• Unique: "One-size-down" assembly system for the best use of space in combination with toothed belt/spindle axis ELGC
• Variants recommended for production systems for manufacturing lithium-ion batteries
