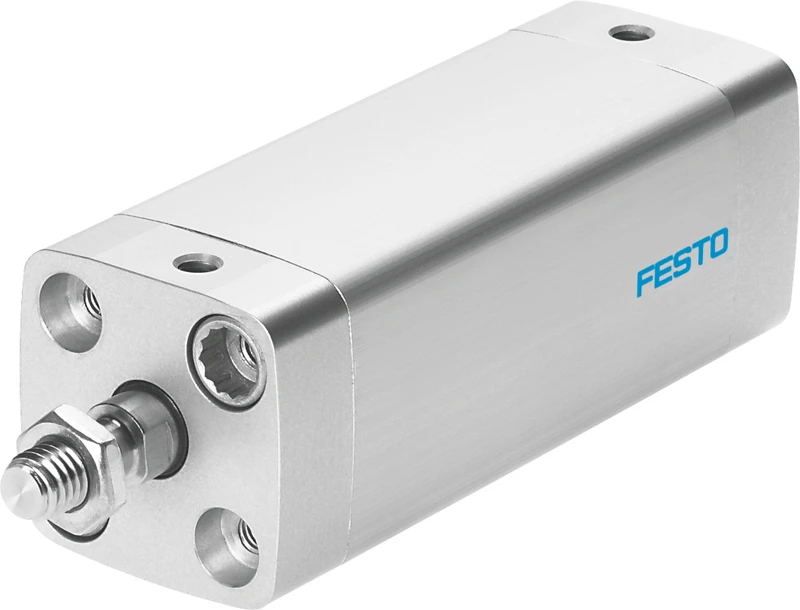

Compact cylinder, CDC-63- -
SKU: 543310
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinder CDC, to ISO 21287, clean design
• Stroke 1 mm ... 400 mm
• Piston diameter 63 mm
• Based on standard ISO 21287
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Design Piston, Piston rod
• Position detection Via proximity switch
• Variants Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder CDC
• Very compact ISO cylinder to ISO 21287.
• Easy-to- clean design and increased corrosion protection.
• Wide range of variants for specific applications, large range of piston rod options.
• Up to 50% less installation space than comparable standards-based cylinders to ISO 15552
• Piston rod with female or male thread
• For position sensing
