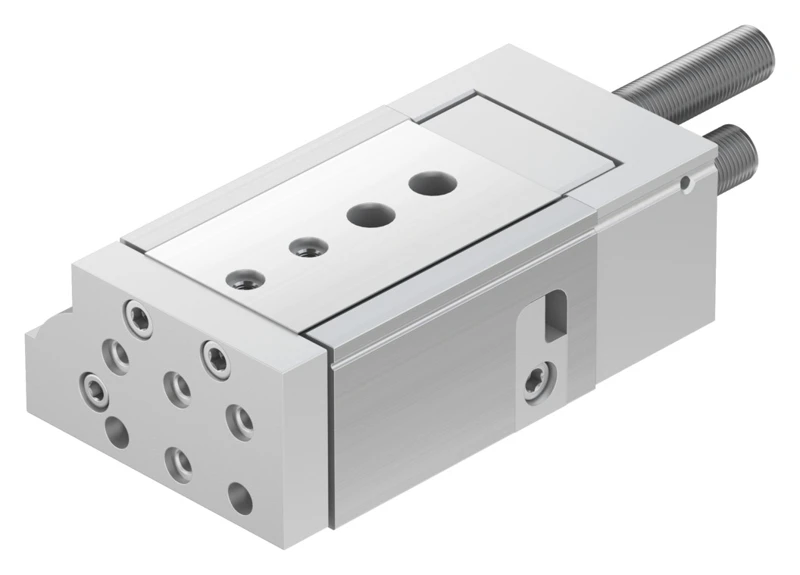

Mini slide, DGSL-20-10-PA
SKU: 544005
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slides DGSL
• Stroke 10 mm
• Adjustable end position range/length front 50.5 mm
• Adjustable end position range/length rear 49.5 mm
• Piston diameter 25 mm
• Operating mode, drive unit Yoke
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Guide Ball bearing cage guide
• Design Yoke, Piston, Piston rod, Slide
• Position detection Via proximity switch
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N
Buy currently uses Select Automation shop pricing and checkout.
Mini slide, metric DGSL
• Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit.
• High load capacity and positioning accuracy
• Maximum movement precision thanks to ground-in ball bearing cage guide
• Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
• Variants with clamping unit or end-position locking for fixing the guide slide
• Wide variety of mounting and attachment options
• Compact design
