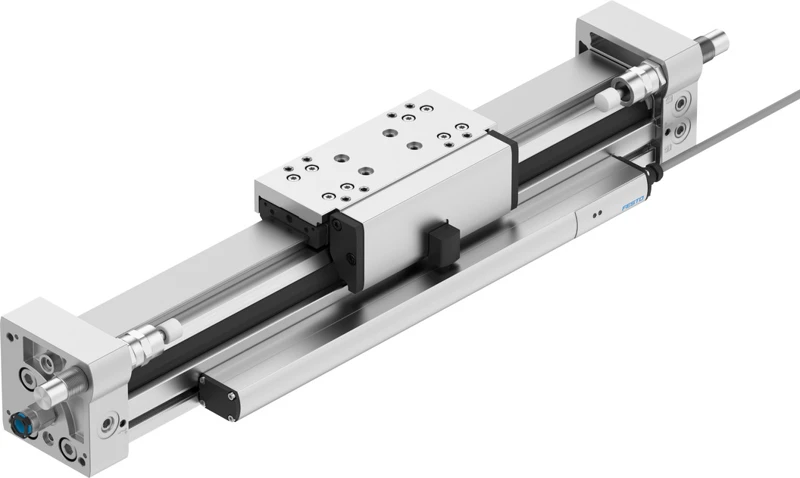

Linear drive, DGCI-32- -

Specifications • Linear drives DGCI, with displacement encoder • Stroke 100 mm ... 2000 mm • Stroke Servopneumatic positioning 100 mm ... 2000 mm • Stroke Smart Softstop 100 mm ... 2000 mm • Stroke reduction at end positions 25 mm • Smallest positioning stroke 3% of max. stroke, Max. 20 mm • Piston diameter 32 mm • Cushioning Shock absorber, hard characteristic curve, Shock absorber, soft characteristic curve • Mounting position optional • Guide Recirculating ball bearing guide • Position detection Via attached displacement encoder • Variants Axis clamping unit, Protected recirculating ball bearing guide, Additional slide, standard, on left, Additional slide, standard, on right • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Operating pressure 29 psi ... 116 psi • Mode of operation Double-acting
