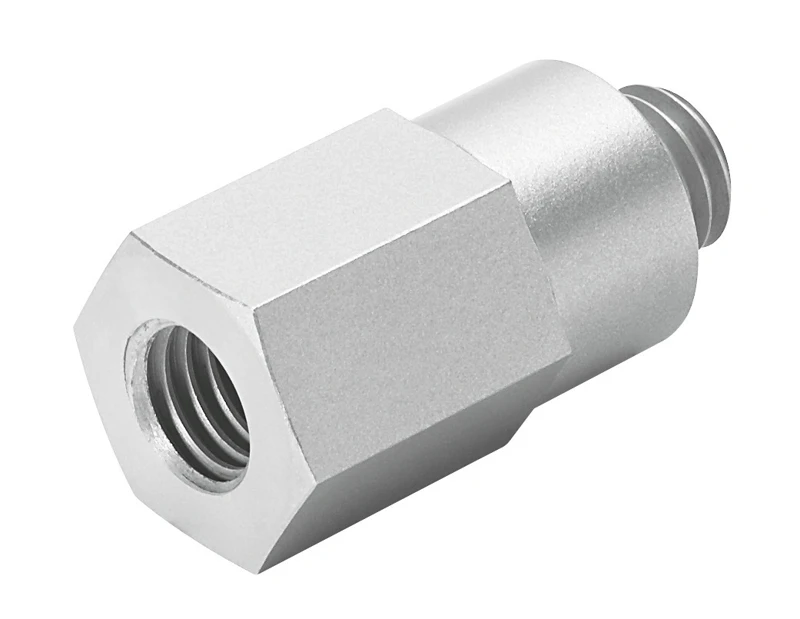

Vacuum security valve, ISV-M10

Specifications • Vacuum security valve ISV • Size M10 • Suitable for ejector pulse ≤0.8 MPa • Suitable for ejector pulse ≤8 bar • Mounting position optional • Symbol 00991481 • Operating pressure -0.095 MPa ... 0 MPa • Operating pressure -0.95 bar ... 0 bar • Required suction volumetric flow at -0.05 MPa (-0.5 bar, -7.25 psi) 2 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C
