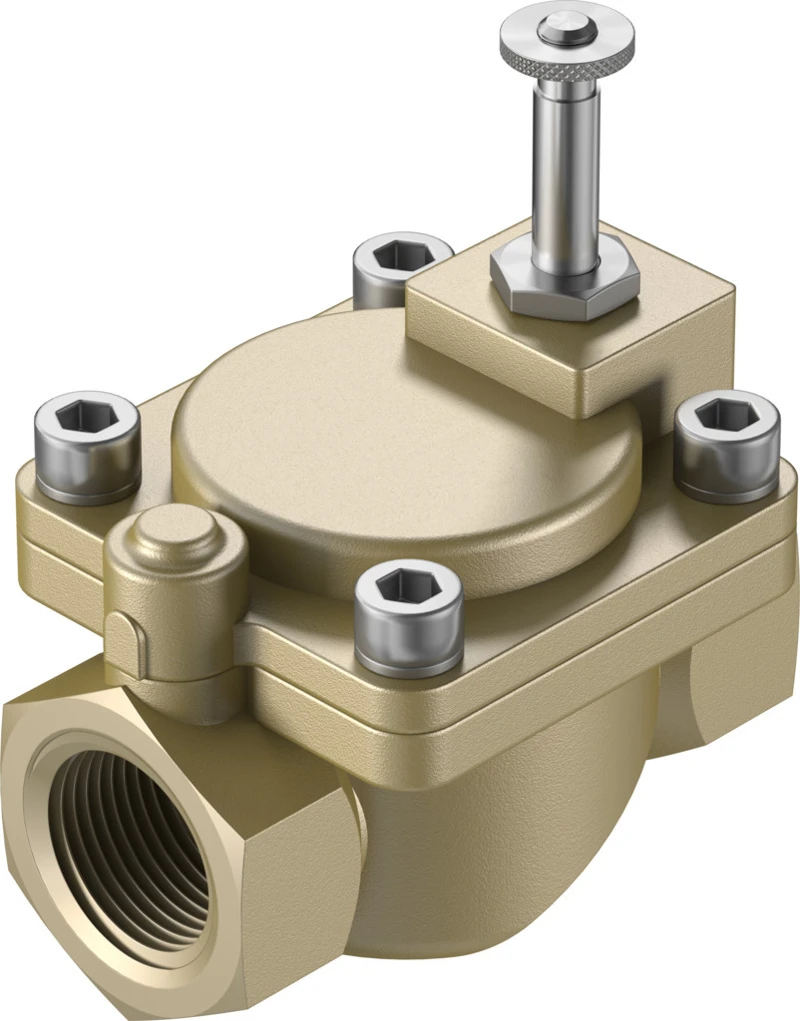

Solenoid valve, VZWM-L-M22C-G112-F5
SKU: 546152
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWM-L
• Design Diaphragm valve, servo-controlled
• Type of actuation Electric
• Sealing principle Soft
• Mounting position Preferably vertical
• Type of mounting In-line installation
• Connection Process valve G1 1/2
• Electrical connection Solenoid coil type MH-... , coil can be ordered as an accessory
• Nominal size 40 mm
• Valve function 2/2-way, closed, monostable
• Flow direction Non-reversible
• Medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids
• Standard nominal flow rate (standardised to DIN 1343) 26400 l/min
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve, metric VZWM
• The poppet valve with diaphragm seal can be used in many applications to control the flow of either air or water.
• Brass or stainless steel casting design
• Electrical connection via solenoid armature tube
• Comprehensive range of coils
• Coil can be ordered separately
