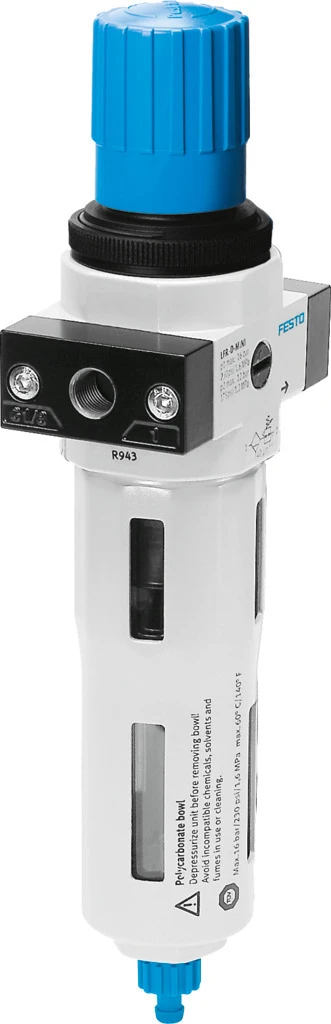

Basic valve, LFR-D-5M-MAXI-A
SKU: 546469
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulator LFR, LFRS
• Size Maxi
• Series D
• Actuator lock Rotary knob with detent
• Mounting position Vertical +/- 5°
• Grade of filtration 5 µm
• Condensate drain Fully automatic
• Structural design Filter regulator without pressure gauge
• Max. condensate volume 79.968 ml
• Bowl guard Metal bowl guard
• Symbol 00991588
• Pressure gauge G1/4 prepared
• Standard nominal flow rate 33368.64 l/min
• Pressure regulation range 0.476 bar - 12.411 bar
Buy currently uses Select Automation shop pricing and checkout.
Compressed air filter regulator LFR, LFRS
• Two pressure gauge connections for different installation options
• With manual, semi-automatic, or fully automatic condensate drain
• Lockable rotary knob
• Size: micro, mini, midi, maxi
