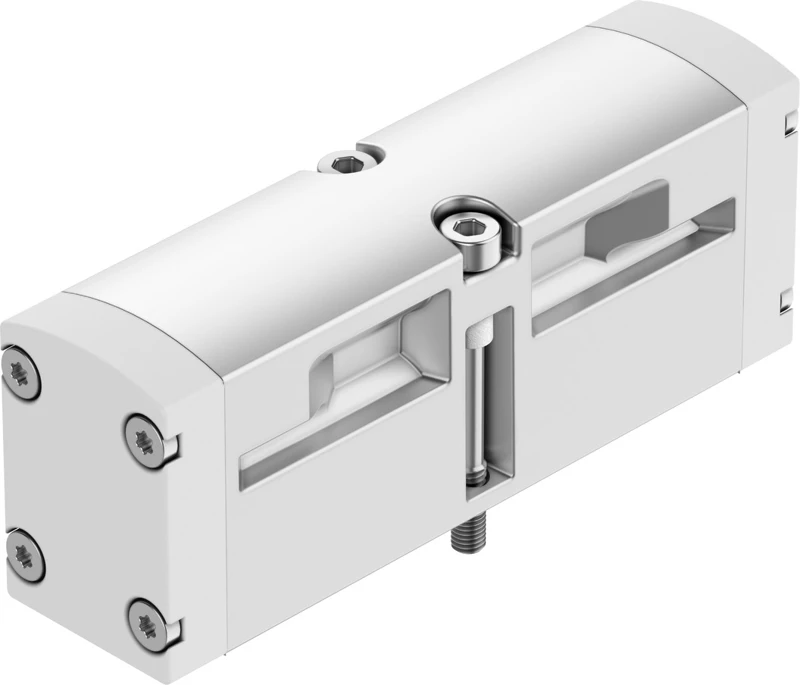

Pneumatic valve, VSPA-B-M52-M-A1

Specifications • Pneumatic valves VSPA, ISO 15407-1 • Valve size 26 mm • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 26 mm • Standard nominal flow rate (standardised to DIN 1343) 1100 l/min • Pneumatic working port Sub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4 • Operating pressure -0.9 bar ... 16 bar • Design Piston gate valve • Type of reset Mechanical spring
