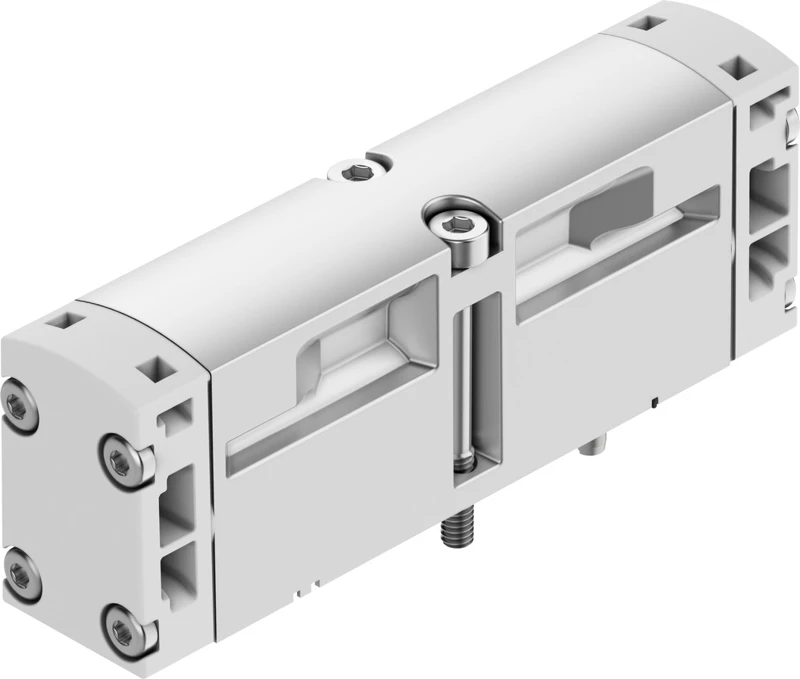

Pneumatic valve, VSPA-B-P53E-A2
SKU: 546729
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves VSPA, ISO 15407-1
• Valve size 18 mm
• Valve function 5/3 exhausted
• Type of actuation Pneumatic
• Construction width 18 mm
• Standard nominal flow rate (standardised to DIN 1343) 450 l/min
• Pneumatic working port Sub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563, G1/8
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve VSPA
• Standards-based valves to ISO 15407-1.
• Conforms to ISO 15407-1
• Pneumatic control
• Manifold assembly with mixed sizes possible
