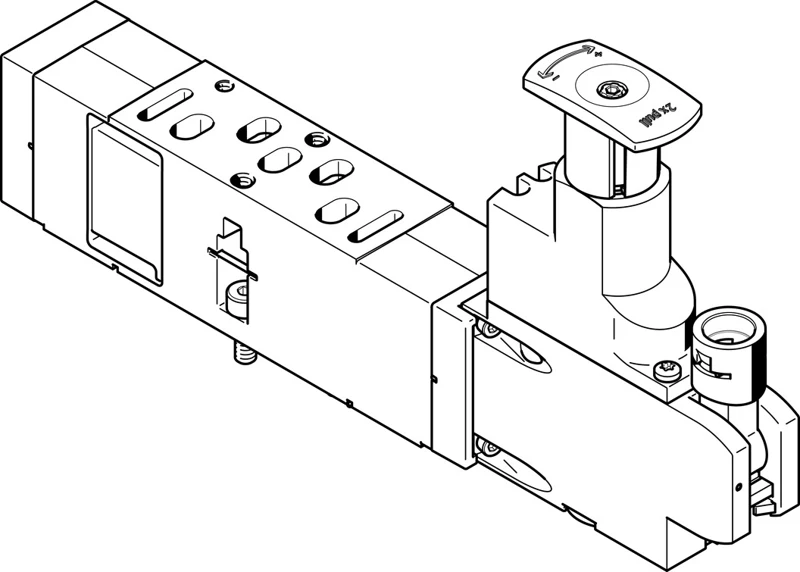

Regulator plate, VABF-S3-1-R7C2-C-6

Specifications • Valve terminals VTSA • Accessories – Pneumatic components • Regulator plate • Construction width 26 mm • Based on standard ISO 15407-1 • Mounting position optional • Vertical pneumatic linkage Pressure regulator for 4 reversible • Controller function Output pressure constant, With secondary venting • Symbol 00991945 • Selection of pressure gauge Possible • Pressure regulation range 0.05 MPa ... 0.6 MPa • Pressure regulation range 0.5 bar ... 6 bar • Pressure regulation range 7.25 psi ... 87 psi • Inlet pressure 1 0.5 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
