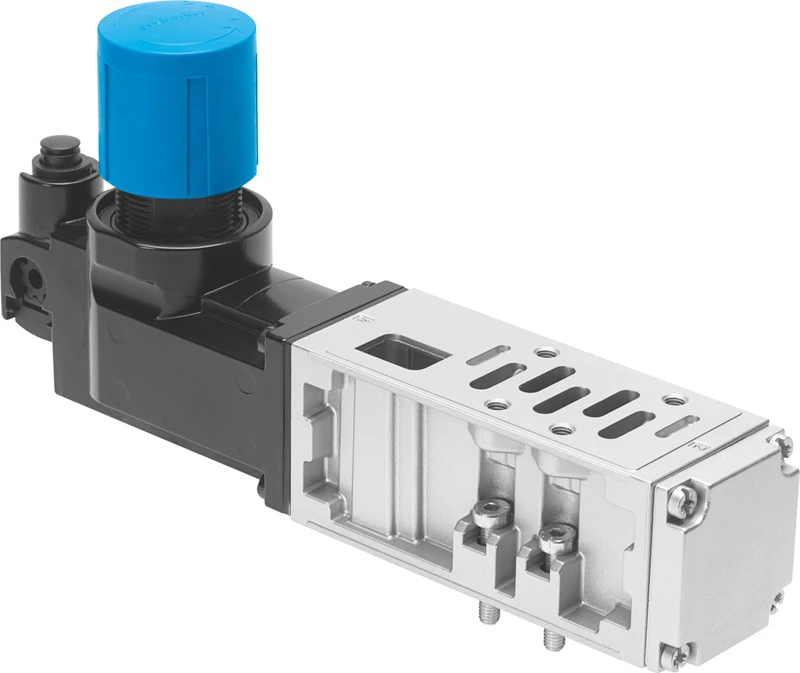

Regulator plate, VABF-S1-1-R3C2-C-6
SKU: 546819
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminals VTSA
• Accessories – Pneumatic components
• Regulator plate
• Construction width 42 mm
• Based on standard ISO 5599-1
• Mounting position optional
• Vertical pneumatic linkage Pressure regulator for 4
• Controller function Output pressure constant, With secondary venting
• Symbol 00991579
• Selection of pressure gauge Possible
• Pressure regulation range 0.1 MPa ... 0.6 MPa
• Pressure regulation range 1 bar ... 6 bar
• Pressure regulation range 14.5 psi ... 87 psi
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Valve terminals VTSA
• Accessories – Pneumatic components
• Regulator plate
• Construction width 42 mm
• Based on standard ISO 5599-1
• Mounting position optional
• Vertical pneumatic linkage Pressure regulator for 4
• Controller function Output pressure constant, With secondary venting
• Symbol 00991579
• Selection of pressure gauge Possible
• Pressure regulation range 0.1 MPa ... 0.6 MPa
• Pressure regulation range 1 bar ... 6 bar
• Pressure regulation range 14.5 psi ... 87 psi
