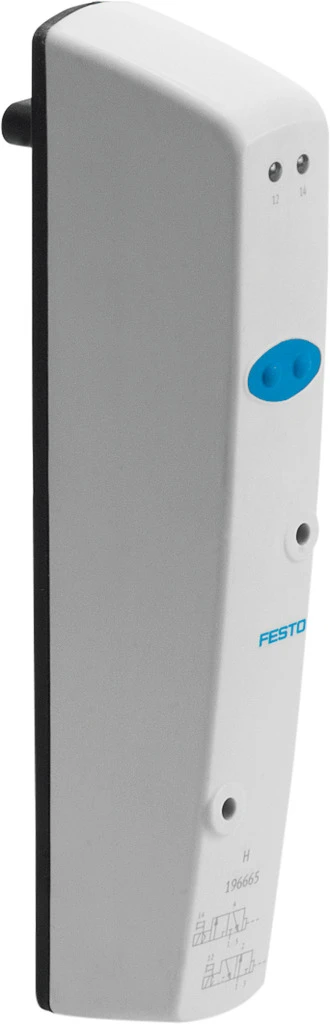

Solenoid valve, CDVI5.0-MT2H-1X3OLS-EXT
SKU: 547014
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves CDSV, Clean Design
• Valve function 3/2 open, single solenoid
• Type of actuation Electric
• Standard nominal flow rate (standardised to DIN 1343) 500 l/min
• Pneumatic working port Sub-base
• Operating voltage 24V DC
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
• Nominal size 5 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve CDVI5.0
• Hygienic single valve in clean design, also suitable for food zones.
• Clean design sub-base valve
• Easy-to-clean design
• Individual valve for clean design
• Can be used in the food zone (based on standard EN 1672-2)
