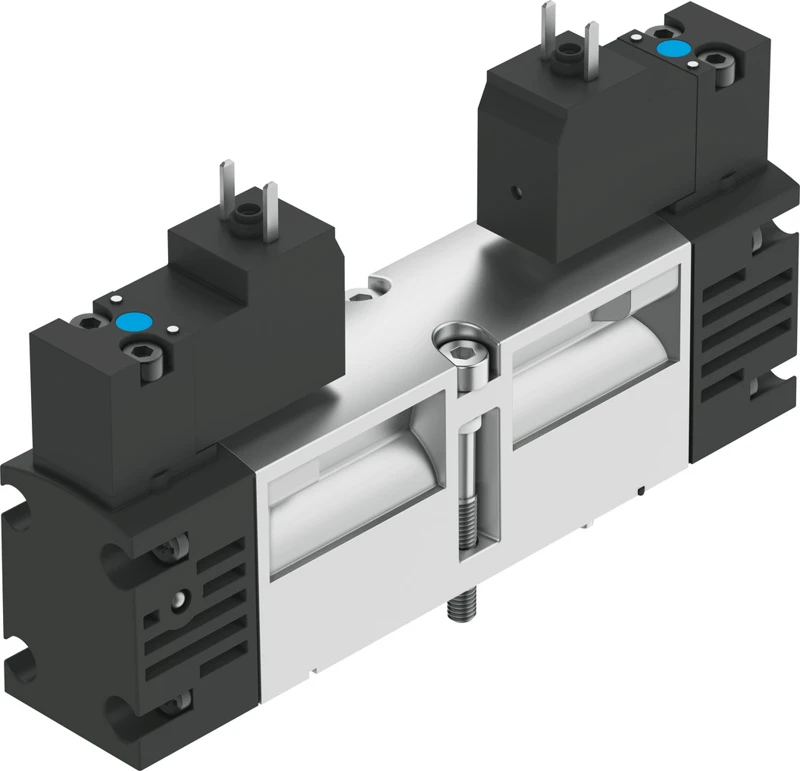

Solenoid valve, VSVA-B-T32U-AZH-A1-1C1
SKU: 547070
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSVA, with pilot interface to ISO 15218
• Valve function 2x3/2-way, open, monostable
• Type of actuation Electric
• Valve size 26 mm
• Standard nominal flow rate (standardised to DIN 1343) 900 l/min
• Pneumatic working port Sub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4
• Operating voltage 24V DC
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve with individual plug VSVA
• Standards-based valve ISO 15407-1 with individual plug.
• Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface
• Electrical connection via plug type C
• Robust metal housing
• Manifold assembly with mixed sizes possible
