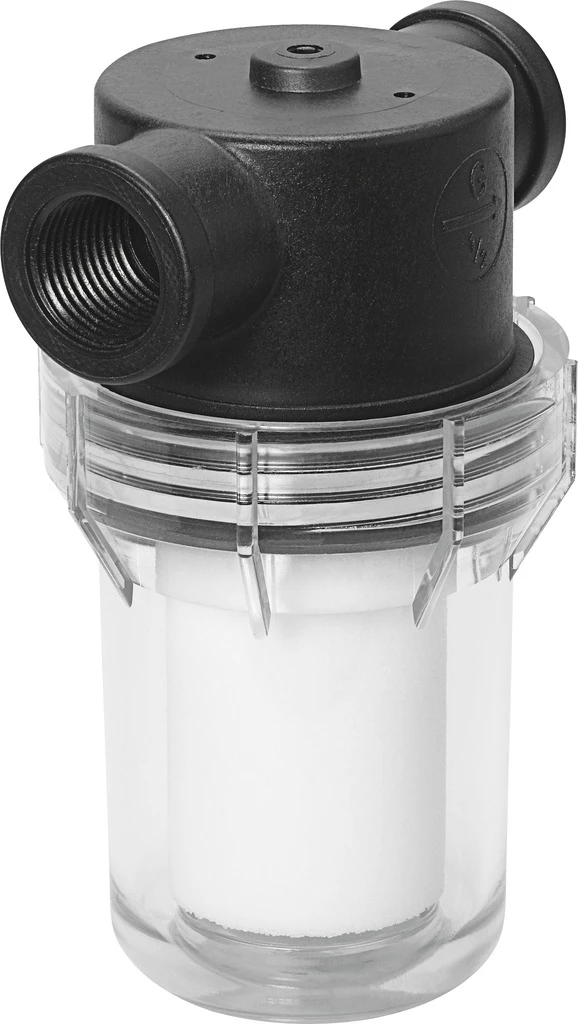

Vacuum filter, VAF-DB-1/4

Specifications • Vacuum filter VAF-DB with transparent bowl for identifying the degree of contamination • Mounting position Vertical • Grade of filtration 80 µm • Symbol 00991483 • Operating pressure -0.95 bar ... 0 bar • Note on operating pressure Only for use in open vacuum systems • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • LABS (PWIS) conformity VDMA24364 zone III • Ambient temperature -5 °C ... 50 °C • Max. tightening torque 8.7 Nm • Product weight 71 g • Type of mounting In-line installation, Via wall/surface bracket • Pneumatic connection G1/4
