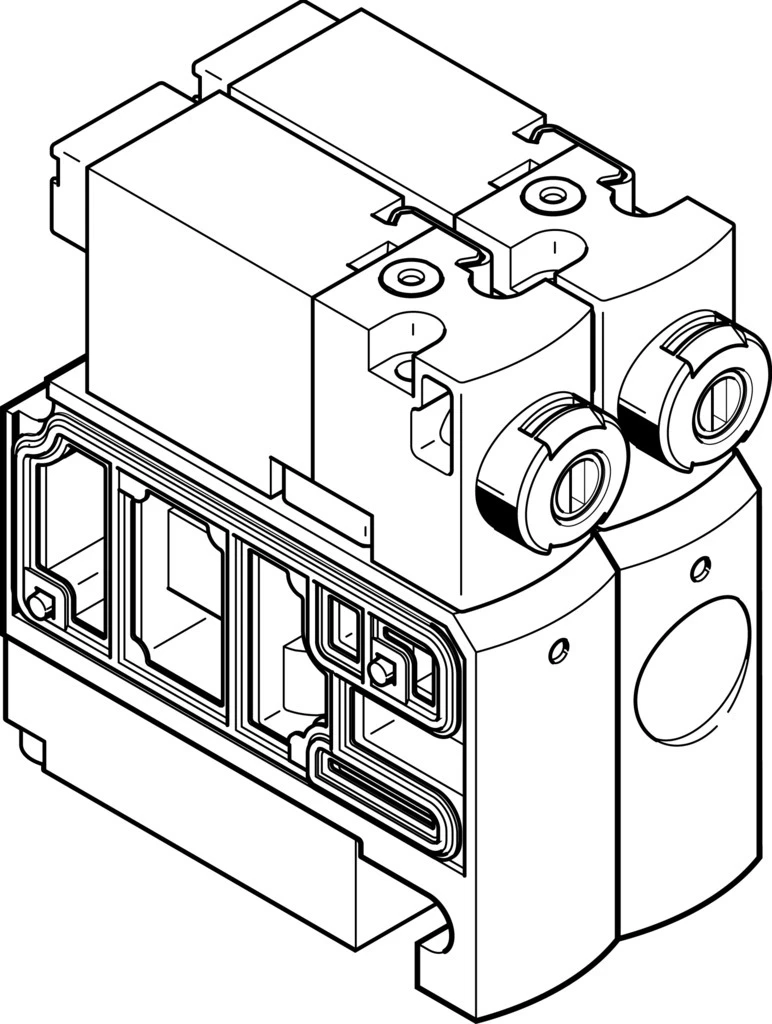

Solenoid valve, CPVSC1-M1H-J-H-Q4

Specifications • Valve terminal CPV-SC, Smart Cubic • Accessories, Solenoid valve • Valve function 5/2 double solenoid • Type of actuation Electric • Valve size 10 mm • Standard nominal flow rate (standardised to DIN 1343) 170 l/min • Pneumatic working port QS-4 • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 0.7 MPa • Operating pressure -0.9 bar ... 7 bar • Design Piston gate valve • Degree of protection IP40 • Exhaust-air function Without flow control option • Pneumatic connection, port 1 Common line
