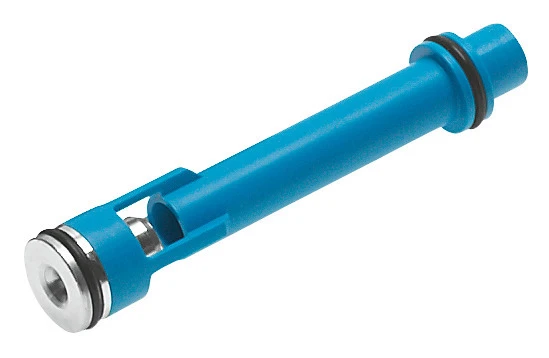

Vacuum generator cartridge, VN-20-H
SKU: 547701
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generator cartridges VN
• Nominal size, Laval nozzle 2 mm
• Mounting position optional
• Ejector characteristic Standard, High negative pressure
• Symbol 00991490
• Operating pressure 1 bar ... 8 bar
• Operating pressure for max. vacuum 3.5 bar
• Max. vacuum 92 %
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 98 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator cartridge VN
• Vacuum generation in a housing for faster evacuation and higher productivity.
• This can be done remotely and very compactly thanks to the cartridge VN.
• Drill a hole in the machine and insert the housingless vacuum generator – ready!
• For fitting into customised housing for decentralised vacuum generation
