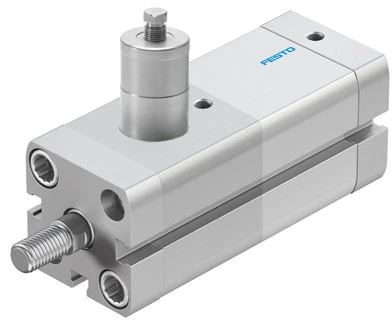

Compact cylinder, ADN-25- -KP-
SKU: 548207
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinders ADN-KP, standard hole pattern, with clamping unit
• Stroke 10 mm ... 300 mm
• Piston diameter 25 mm
• Piston rod thread M8
• Based on standard ISO 21287
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Type of clamping with direction of action on both sides
• Piston-rod end Female thread
• Design Piston, Piston rod, Cylinder barrel
• Position detection Via proximity switch
• Symbol 00991260
• Variants Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Laser etched rating plate
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinders ADN/AEN, to ISO 21287
• The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter
• The ADN/AEN is characterised by its compact design and wide range of application thanks to the large number of variants
• The variants can be configured using a modular product syste
• Integrated cushioning for absorbing residual energy
• Long service life thanks to exceptional cushioning characteristics and low friction values
• Easy to mount with a comprehensive range of mounting accessories for just about every type of installation
• Highly flexible thanks to the wide range of variants
• Contactless position sensing using proximity switches
• Optimised manufacturing methods, patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great partner
