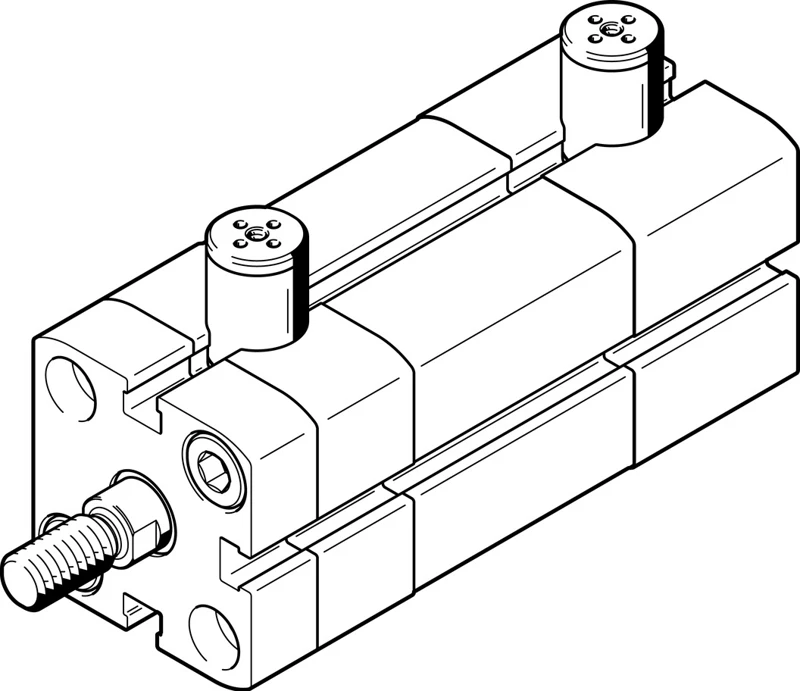

Compact cylinder, ADN-20- -EL-
SKU: 548214
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinders ADN-EL, standard hole pattern, with end-position locking
• Stroke 10 mm ... 300 mm
• Piston diameter 20 mm
• Piston rod thread M8
• Based on standard ISO 21287
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Piston-rod end Female thread
• Design Piston, Piston rod, Cylinder barrel
• Position detection Via proximity switch
• Variants With end-position locking on both sides, With end-position locking at rear, With end-position locking at front, Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Laser etched rating plate
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Mode of operation Double-acting
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinders ADN/AEN, to ISO 21287
• The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter
• The ADN/AEN is characterised by its compact design and wide range of application thanks to the large number of variants
• The variants can be configured using a modular product syste
• Integrated cushioning for absorbing residual energy
• Long service life thanks to exceptional cushioning characteristics and low friction values
• Easy to mount with a comprehensive range of mounting accessories for just about every type of installation
• Highly flexible thanks to the wide range of variants
• Contactless position sensing using proximity switches
• Optimised manufacturing methods, patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great partner
