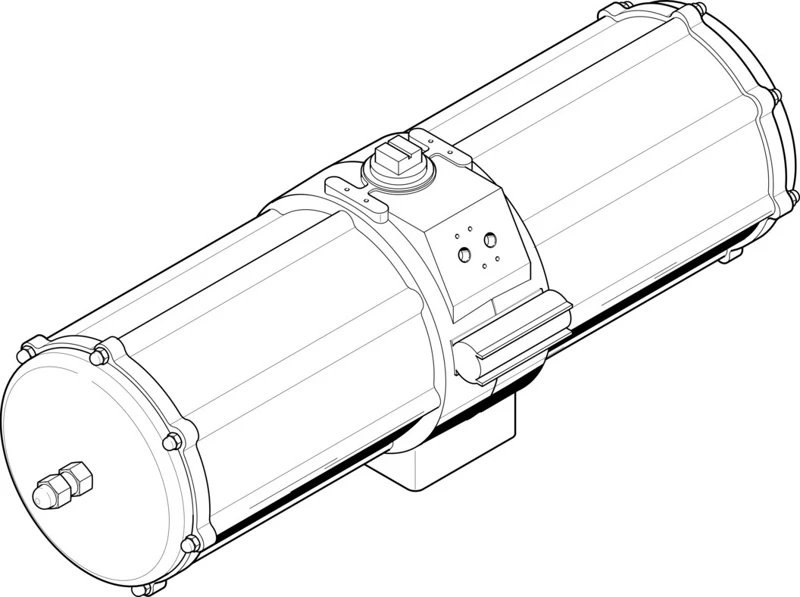

Semi-rotary drive, DAPS-2880-090-RS4-F16

Specifications • Quarter turn actuators DAPS, single-acting • Pneumatic connection G3/8 • Torque at nominal operating pressure and 0° swivel angle 2880 Nm • Shaft connection T46 • Size of valve actuator 2880 • Flange hole pattern F16 • Swivel angle 90 deg • End-position adjustment range at 0° -5 deg ... 5 deg • End-position adjustment range at nominal swivel angle 85 deg ... 95 deg • Shaft connection depth 49.5 mm • Fitting connection conforms to standard ISO 5211 • Cushioning No cushioning • Mounting position optional • Mode of operation Single-acting • Design Scotch yoke system • Position detection Without
