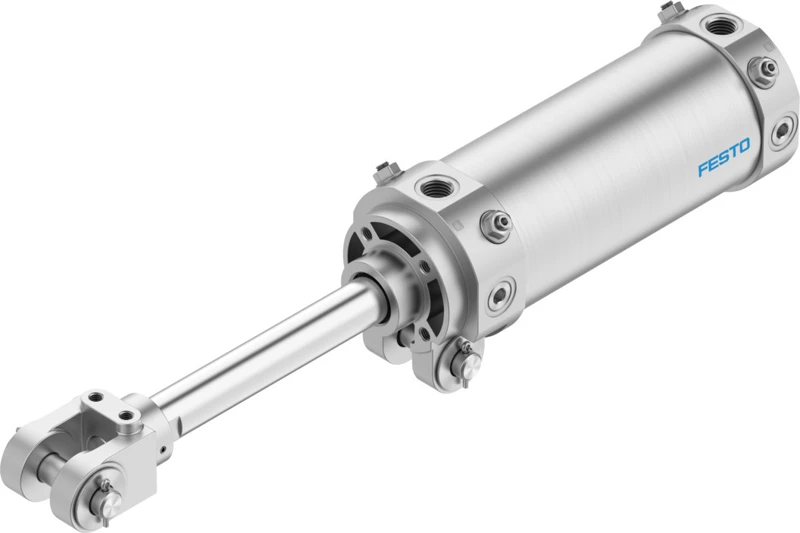

Hinge cylinder, DWA-63-125-Y-AB
SKU: 549715
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Hinge cylinders DW, With Rc thread
• Stroke 125 mm
• Piston diameter 63 mm
• Piston rod thread M16x1.5
• Broad rod clevis/swivel mounting 16 mm
• Cushioning Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Design Piston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel
• Speed regulation Integrated flow control at both ends
• Position detection Via proximity switch
• Piston-rod end Male thread with rod clevis
• Pneumatic connection Rc1/4
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1870 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 1682 N
Buy currently uses Select Automation shop pricing and checkout.
Hinge cylinder DW
• Ideal for clamping parts in welding processes: the round cylinder DW in articulated design.
• Clevis on bearing cover.
• For clamping components during the welding process
• Double-acting
• Easy to mount thanks to swivel bearing on the bearing cap
• Integrated flow control
• Integrated end-position cushioning
• Rod wiper seal to protect against welding spatter
• Asian automotive standard for car body production
