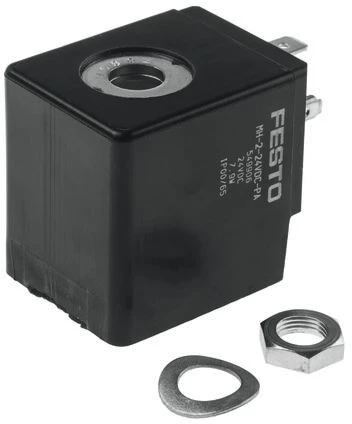

Solenoid coil, MH-2-24VDC-PA
SKU: 549906
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid coils MH-2, Without plug socket, plug pattern to EN 175301-803, type A
• Mounting position optional
• Switching position indicator no
• Min. pick-up time 12 ms
• Duty cycle 100%
• Power factor (cos phi) 0.7
• Characteristic coil data 24 V DC: 7.9 W
• Permissible frequency fluctuations +/- 10%
• Permissible voltage fluctuations +/- 10 %
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP65
• Note on degree of protection IP00 without connector socket
• Ambient temperature -20 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Solenoid coils MH-2, Without plug socket, plug pattern to EN 175301-803, type A
• Mounting position optional
• Switching position indicator no
• Min. pick-up time 12 ms
• Duty cycle 100%
• Power factor (cos phi) 0.7
• Characteristic coil data 24 V DC: 7.9 W
• Permissible frequency fluctuations +/- 10%
• Permissible voltage fluctuations +/- 10 %
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP65
• Note on degree of protection IP00 without connector socket
• Ambient temperature -20 °C ... 50 °C
