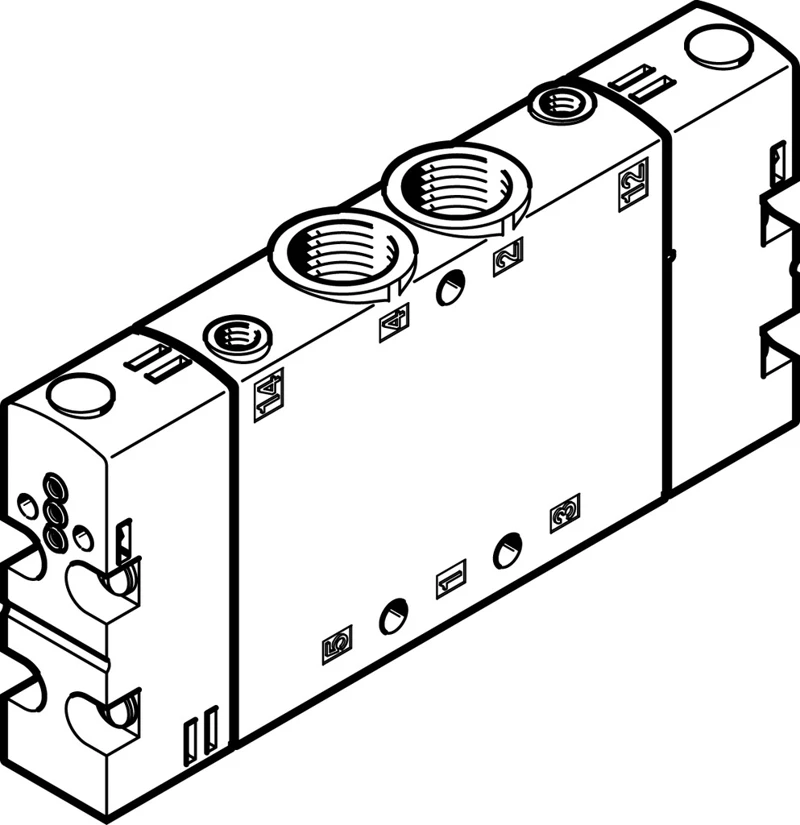

Basic valve, CPE18-P1-5J-1/4
SKU: 550155
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Basic valves CPE18
• Valve function 5/2 double solenoid
• Type of actuation Via pilot interface to ISO 15218
• Construction width 18 mm
• Standard nominal flow rate (standardised to DIN 1343) 1500 l/min
• Pneumatic working port G1/4
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
• Design Piston gate valve
• Approval c UL us - Recognized (OL)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve CPE
• Minimum width, low electrical power consumption and maximum flow control values: the solenoid valve CPE.
• Universal individual valve
• High flow rate relative to its size
